Vitrified Diamond Wheels Application Case of EWAG Compact Line:
The

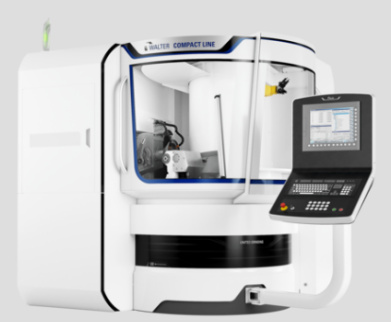

COMPACT LINE CNC insert grinding machine is equipped with 6-axes. It can be used for the production of indexable inserts such as cutters, milling tools, turning tools and forming inserts. This model supports a wide range of clamping systems and can be retrofitted via a plug-and-play interface, offering full freedom in your tool, order and lot selection. Thanks to the minimal setup time, even very small batches can be produced economically.
Processing Details:
Wheel size : 11A2-Ø200-W10-X10-H40
Wheel grit: D16 C125
Wheel speed :12M/S~30M/S
Machine: EWAG Compact line
Press:feed on pressure at 130-140 Nm
coolant：Oil
Workpiece: PCD inserts
Work life: 0.07mm/plate
Moresuperhard Vitrified Diamond Wheels fpr EWAG Compact Line:
► Application: grinding carbide and HSS. (such as drill, end mill, reamer)
► A complete solution for CNC tools manufacturing: fluting, gashing and Clear edge, relief angle grinding, OD grinding
► Model: 1A1, 1V1, 11V9, 12V9, 14A1, 12V5, etc (or full customed )
