► Grinding Indexable inserts (tungsten carbide inserts, ceramic inserts, CBN inserts)

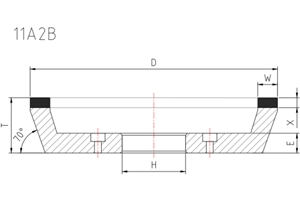

► Model: 6A2T, 6A2M, 11A2B, 12A2T
► Grinding Machine: WENDT, WAIDA, AGATHON, EWAG, COBORN, etc.
Application Of Peripheral Diamond Grinding Wheels
Mainly used for precise edge grinding of indexable inserts (such as tungsten carbide inserts, ceramic inserts, CBN inserts).
Materials of workpiece: tungsten carbide, ceramics, metal ceramic PCD/ PCBN inserts, etc.
AGATHON:
400 Series: 400 PENTA, 400COMBI, 400SEMI, 400PERI.
350 Series: 350T B, 350COMBI
250 Series: PA250
WENDT:
400 Series: WAC715, WAC735
350 Series: WAM336
WAIDA
AP460E
Model |
Suitable Machine |
D(mm) |
H(mm) |
W(mm) |
T(mm) |
X(mm) |
|
|
WAIDA:AP460E |
200 |
60 |
6,8,10,12 |
45 |
6 |
|
|
Wendt:400 Series |
400 |
336 |
6,8,10,12,15 |
39 |
6 |
|
|
Agathon:350 Series |
350 |
200 |
6,8,10,12,15 |
27 |
6 |
|
|
Agathon:400 Series |
400 |
340 |
6,8,10,12,15 |
28 |
6 |
6A2H |
EWAG WS Series
|
150 |
40 |
4 6 10 15 20 |
40 |
5 6 8 10 |
2A2T |
WENDT WCD |
350 |
310 |
5 10 17.5 |
45 |
6 |
Other size can be produced according to customers’ requirement |
||||||
|
|
|
|
|
D16 C125 |
Wheel speed： |
|
|
Oil |
|
|
|
feed on pressure at 130-140 Nm |
Work life： |
|
