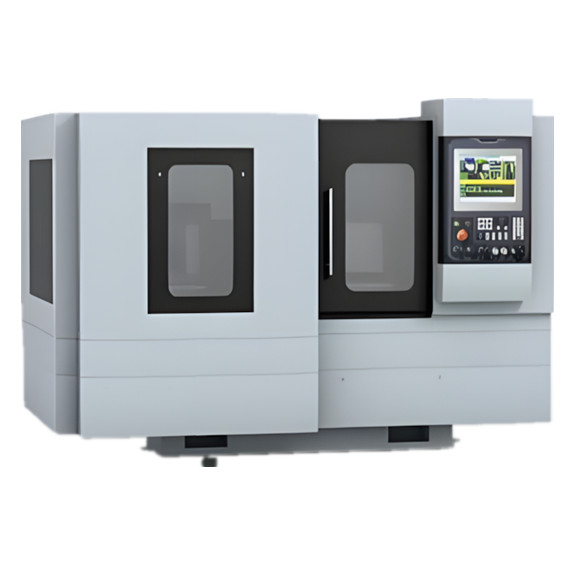

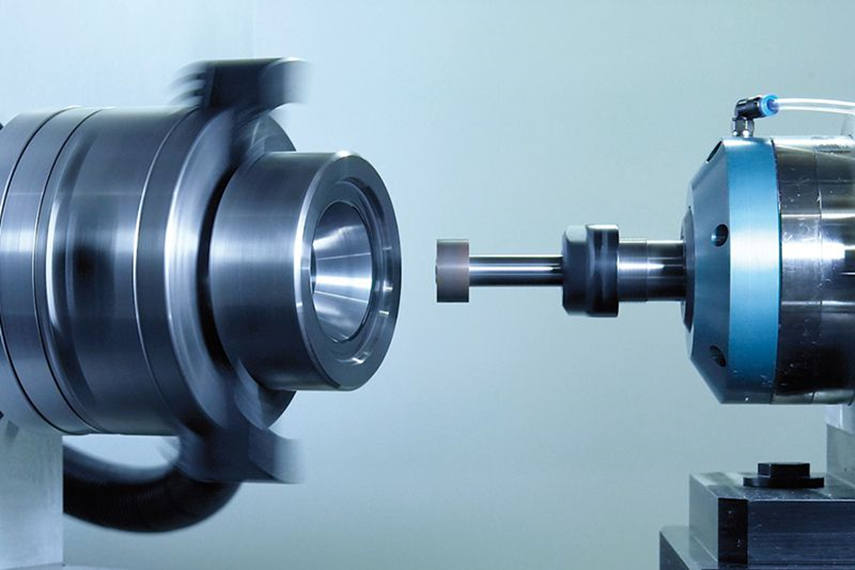

High-precision Internal Grinding Machine
High-precision Internal Grinding Machine

High-precision Internal Grinding Machine




Share:

Moresuperhard High Precision Internal Grinding Machine

1. Mechanical specifications

  Description Specifications
Dimensions Dimensions 2180*1615*1894mm
Machine weight Machine weight 2300kg




Grinding parameters
Grinding workpiece inner hole diameter 6-100mm
Maximum grinding workpiece inner
hole depth
150mm
Maximum workpiece rotation diameter 400mm
Clamping workpiece diameter range 10-180mm
Grinding taper angle +15 °--  ﹣ 15 °
Maximum grinding wheel diameter for
inner hole grinding
D10-D50







Axial Parameters
X-axis Maximum Left and Right Travel 500mm
Z-axis Maximum Forward and Backward
Travel
400mm
X-axis Maximum Left and Right Travel
Speed
0-20000mm/min
Z-axis Maximum Forward and Backward
Travel Speed
0-20000mm/min
X-axis Minimum Left and Right Input
Unit
0.0001mm
Z-axis Minimum Forward and Backward
Input Unit
0.0001mm

Electronic Handwheel
Number of Controlled Axes 5
Minimum Control Unit
0.0001mm







spindle
Interal grinding wheel speed 18000rpm(Standard)
24000-30000(Optional)
Workpiece spindle speed 10-1000rpm
External grinding wheel spindle speed 10-2000rpm
Spindle runout 0.002mm
Spindle power 5.7KW
External motor power Magnetic separator 25W/380V
Cutting fluid motor 0.55W
Power Supply Power Requirements 35KAV
Input Voltage 380V
Hz 50/60Hzd






Accuracy
Positioning Accuracy 0.002mm
Repeat positioning accuracy 0.002mm
Accuracy Verification Method ISO 9001:2015
Internal Hole Roundness 0.001mm(Workpiece length
within 50mm)
Internal Hole Cylindricity 0.002mm(Workpiece length
within 50mm)
Internal Hole Dimensional
Tolerance
Within 0.003mm
Internal Hole Surface Roughness Ra0.1-0.3 μm


2. Main Components

Name Manufacturer Accuracy
Grade/Model
Region
System Xin Dai 22MA Taiwan
X/Z Axis Screw THK C3 Taiwan
X/Z Axis Guide INA 45mm/SP Germany
Spindle     Taiwan
Grinding Wheel
Dresser
MOAO
Lubrication System Bao Teng Grease
Electrical Components Shi Naidei
Pneumatic
Components
Ya Deike
Cold-Cut Water Pump Chang Zhou Bei Ju
Diaphragm Coupling


3.  Axial bearing specifications

Axial Motor end Brand Tail end Brand
X-axis Angled ball
bearing
(25TAC62B)

NSK

(25TAC62B)

NSK

Y-axis
Angled ball
bearing
(25TAC62B)

NSK

Free end

NSK

4.  Axial Ball Screw Specifications

Axial Diameter*Pitch Nut Type Grade Lubrication
X-Axis Φ40* 10 F-Type Precision
Nut
C3 Yellow Grease
(Disposable)
Y-Axis Φ*6 C3


5.  Control System

Name Specifications
System Xin Dai(22MA)
System Display 15’’ Display
Panel Zheng Jia
Workpiece Spindle Motor 5.7KW
Grinding Wheel Spindle Motor 5.7KW
Servo Motor X/Z-Axis Motor 2.4KW



6.  Accessories

Standard Accessories
Name Quantity Remarks
Tool Box Set 1
Electrical Cabinet Heat Exchanger 1
Work Light 1
Full Sheet Metal Cover 1
Four-Axis Spindle 1
Cooling Water Tank 1
Three-Jaw Chuck 1
