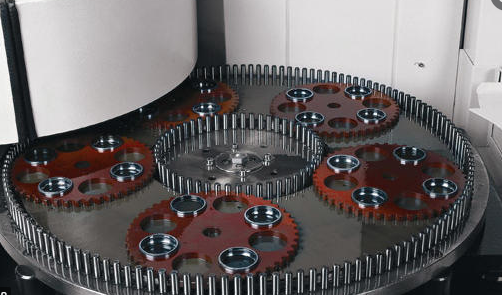

Double face grinder grinding for powder metallurgy gear

As the competition in the gear processing industry continues to intensify, the precision requirements and surface quality quality requirements for grinding gear end faces are becoming more and more stringent. At present, in the manufacturing process of gears, the industry often uses the method of powder metallurgy processing and general processing. For the gears of the powder metallurgy process, which dominates the market, the dimensional consistency is good, the stability is good, and the precision requirement is high. The strength and hardness of the conventional formulation of double-end grinding discs also face great challenges. Therefore, Moresuperhard has concluded a mature solution for our customers for the high precision grinding of the end face of powder metallurgy gears.




Product features of double-end grinding discs：

1、High grinding efficiency
2. High abrasion resistance
3、Great grinding force and low grinding temperature
4. High precision and good surface quality of the ground workpiece and good flatness of the workpiece

Normal speed of grinding disc 30-60 rpm
Grinding disc precision, flatness, parallelism ≤0.03mm
Workpiece finish Ra0.1μm-Ra1.2μm
Flatness 0.001mm-0.004mm, parallelism ≤0.002mm, contour ≤0.002mm

Applications of double-end grinding discs:

powder metallurgy gear, duplex gear, timing belt pulley, sprocket, planetary gear, spur gear, flat gear, stainless steel, copper, aluminum alloy, hardware parts, auto parts, cell phone parts, optical crystal, sapphire glass, LED sapphire substrate, light guide plate, piezoelectric ceramic sheet, alumina ceramic, plastic sheet, silicon sheet, bathroom, optical, jewelry, liquid metal and other metals and Non-metallic materials, high precision grinding or polishing of large batch of flat surfaces.



Matching equipment：
 Korea AM, Japan Koyo, Germany Pietro Walter, UK Lemart, etc.

Optional supporting products：

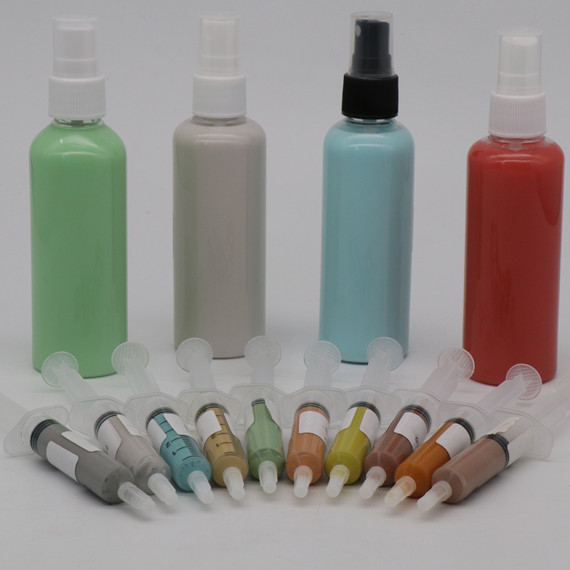

- Diamond grinding fluid/grinding paste

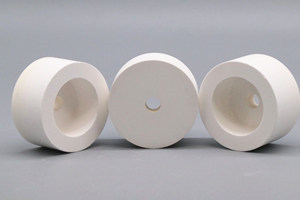

- Silicon carbide/white corundum dressing ring




---

With a global development strategy and comprehensive multilingual business departments, Moresuperhard keeps an eye on the latest developments in the global grinding industry and is committed to providing high-quality and efficient grinding products and services to our customers worldwide!  We also accept customized orders to suit your needs.

If you have any questions about double-end grinding discs, please feel free to contact us! You can leave us your questions below, and we will contact you as soon as possible!
