Hybrid diamond and cbn wheels for grinding cutting tools

Hybrid Diamond & CBN Wheels

► Hybrid bond : resin (polyimide) and metal bond

► Application: fluting and gashing end mill, drill and reamer

► CNC Grinder: Anca, Walter, Ewag, Schneeberger, etc

Details

Specifications

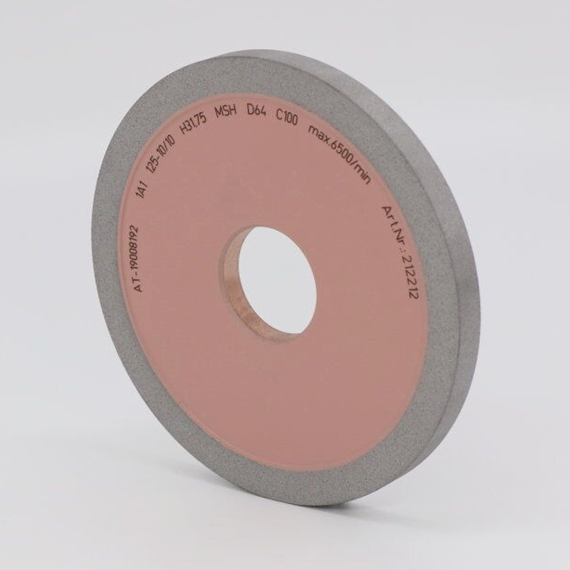

Hybrid Grinding Wheels

Hybrid bond is used for grinding of solid shank cutting tool process (such as end-mills, drills and reamers)
► Hybrid bond Diamond Wheel : For carbide tool grinding
► Hybrid bond CBN Wheel : For HSS tool grinding
hybrid grinding wheels

Advantages of hybrid diamond & cbn wheels
► Resin (polyimide) bond. Good grinding performance and surface roughness, elasticity, minimal chipping
► Metal bond. High wear resistance and high thermal stability, excellent grinding ability and long tool life
► Dressing interval: more than double
► Tool life: more than 1.5 times

Cases of Hybrid Grinding Wheel

Case 1 – Fluting for carbide end mill

Grinding wheel	3V1 D150
Machine	5-axis CNC grinder
Coolant	Oil
Work piece	Carbide end mill
Grinding process	Flute
Feed rate	140mm/min
Cutting speed	18m/s

Case 2 – Gashing for carbide endmill

Grinding wheel	12v9 D125
Machine	ANCA 5-axis CNC grinder
Coolant	Oil
Work piece	Carbide end mill
Grinding process	Gash
Feed rate	60 mm/min
Cutting speed	20 m/s
