diamond grinding wheel for fluting end mill, reamer

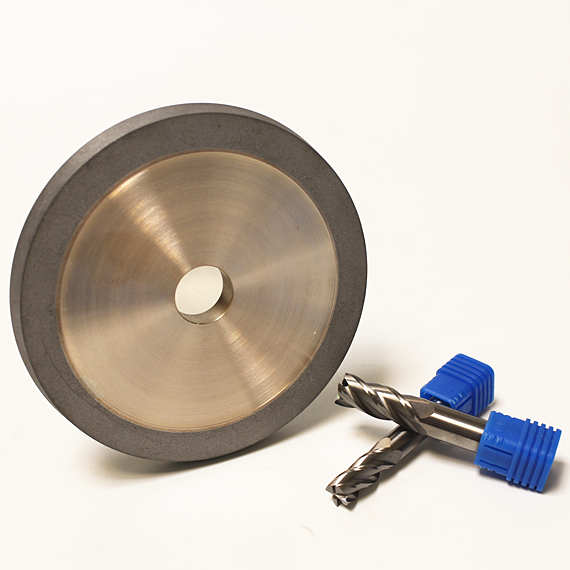

Diamond Fluting Wheel

► Model: 1A1, 1V1, 14A1, 3A1

► Application: fluting end mill, drill, cutter

► Advantages of flute wheel
* Online truing & dressing capability lower tooling cost
* Better edge quality

Details

Specifications

Flute grinding end mill, reamer

Flute grinding is a most demanding and time-consuming operation, owing to the high stock removal. Used for fluting end mill, drill, cutter, etc

fluting grinding wheels

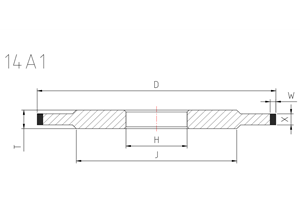

Specifications of flute grinding wheel

Type	D		T/U		X		V	Grit Size
1A1 14A1	mm	Inch	mm	Inch	mm	Inch		diamond	CBN
	75	3	1-12	1/25 1/2	3-10	1/8 2/5	90̊	D64 D54 D46	B126 B91 B76
	100	4	1-16	1/25 2/3	3-10	1/8 2/5		D64 D54 D46	B126 B91 B76
	125	5	1-16	1/25 2/3	6-10	1/4 2/5		polishing
	150	6	2-16	1/12 2/3	6-15	1/4 3/5		D35 D25 D20 D15	B54 B16

Related Products

Inquiry

If you have any questions, feedback or comments, please fill out the form below and we will reply you back as soon as possible.

DRESSING

Stationary Diamond Dresser Rotary Diamond Roll Dressing Wheel Dressing Sticks
