diamond cylindrical wheel for thermal spraying coated
diamond cylindrical wheel for thermal spraying coated
diamond cylindrical wheel for thermal spraying coated
diamond cylindrical wheel for thermal spraying coated
diamond cylindrical wheel for thermal spraying coated
diamond cylindrical wheel for thermal spraying coated

Diamond Cylindrical Wheel for Thermal Spraying Coated

We provide a full range of thermal spray coating solution and service which includes

► OD cylindrical grinding wheel (1A1 shape)

► Diamond sanding belts

► Diamond internal grinding wheel

► Diamond honing stone

Model: 1A1 diamond wheel (diameter up to 1100mm)



SEND INQUIRY SEND EMAIL
Share:
Details
Specifications
Related Products
Inquiry

cylindrical diamond wheel for carbide coated grinding

/diamond grinding wheel for carbide thermal spray
Cylindrical diamond wheel is used for grinding and finishing of thermal spray coatings ( including tungsten carbide , chrome carbide and chrome oxide ), ceramics, carbides, chilled iron composites and other hard-to-grind materials.
resin diamond grinding wheel for carbide thermal sopraying coating

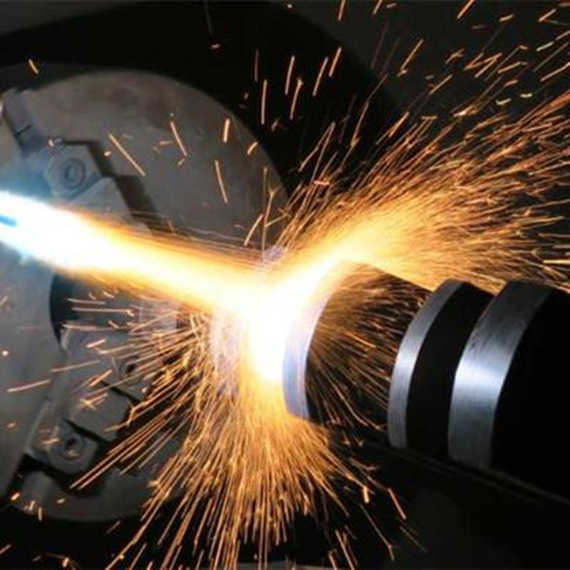

Thermal Spray Coating Process
Thermal Spray technologies includ Flame wire spray, Arc spray, Plasma spray, HVOF or HVAF , Detonation Spray, Cold spray .Thermal spraying technology is widely used in aerospace, aviation, machinery, metallurgy, chemical, petroleum, coal, railway, textile and many other departments .
thermal spray coating


Specifications of diamond cylindrical wheel for carbide coating

Diameter (mm) Diameter (inch) H (mm) T (mm) X (mm)
25 1 inch 6 12 6
30 - 12 6 -
40 - 12 6 -
50 2 inch 6 12 6
100 4 inch 12 12 10
150 6 inch 12 25 10
300 12 inch - 25 10
400 16 inch 127 25, 50 10, 25
500 20 inch 127, 203.2 25, 50 10, 25
600 24 inch 254 25, 50 10, 16, 25
750 30 inch 304.8 50 10
914.4 36 inch 304.8 25, 50 10, 25
1100 43 inch 304.8 50 10
Other specification can be made according to customer requirement Email:[email protected]

Application Case : Diamond grinding wheel for Tungsten carbide coating Roller

Operation: External grinding
Workpiece: Roll Diameter 120—1000 mm, Length 1.5—10 mm
Material: HVOF spraying tungsten carbide or ceramic coating on a steel body
Dressing white aluminum oxide 240#
Machine: External grinding machine
Coolant： Emulsion, Pressure: >/= 3 Bar
Diamond wheel specification: 1A1 D750*T50*H304.8*X10 mm D126 N100 Aluminum wheel body
Parameters: Wheel speed: 18—24 m/s,
Depth of cut：0.01 –0.03 mm
Feed: 300—800 mm/min
Roll speed: 15—20 m/s
