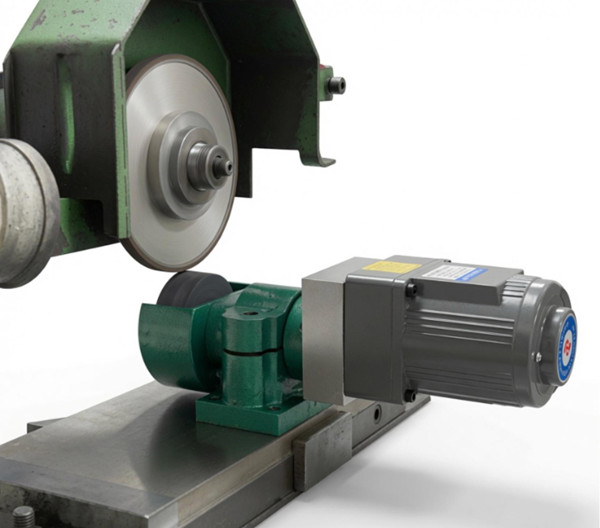

Electric Diamond Grinding Wheel Dresser: Precision Dressing for CBN & Diamond Grinding Wheels
How to Choose the Right Compact Electric Diamond Dresser for Small-Batch Precision Machining？
When it comes to achieving and maintaining peak grinding performance in precision machining, the quality of your grinding wheel dresser matters just as much as the wheel itself. For shops and manufacturers working with CBN (cubic boron nitride) and diamond grinding wheels—especially on small to medium-sized workpieces—a compact, reliable electric diamond grinding wheel dresser can make the difference between substandard surface finishes and consistently high-precision results.
This comprehensive guide explores the features, applications, and selection criteria for compact electric diamond grinding wheel dressers, with a focus on how More Superhard's small horizontal electric grinding machine addresses the demanding needs of precision grinding professionals worldwide.
What Is an Electric Diamond Grinding Wheel Dresser?
An electric diamond grinding wheel dresser is a precision mechanical device designed to restore the cutting efficiency of grinding wheels by removing dulled or loaded abrasive grains from the wheel's working surface. Unlike manual dressing tools, electric dressers use a motorized spindle to drive a dressing tool—typically a single-point or multi-point diamond—against the rotating grinding wheel at a controlled rate and pressure.
The result is a precisely shaped, sharp, and properly profiled grinding wheel surface that delivers:
Superior workpiece geometry — consistent dimensions and surface flatness
Improved cutting action — reduced grinding forces and power consumption
Better surface finish — smoother Ra values and tighter tolerances
Extended wheel life — consistent dressing extends the usable life of expensive CBN and diamond wheels
Electric diamond dressers are especially valuable in CNC grinding environments where repeatability, automation, and precision are paramount.
Why CBN and Diamond Grinding Wheels Require Specialized Dressing？
CBN and diamond grinding wheels represent the pinnacle of abrasive technology for machining hard and super-hard materials including hardened tool steels, aerospace alloys, ceramics, and composites. These superabrasive wheels maintain their sharpness far longer than conventional aluminum oxide or silicon carbide wheels—but when they do require dressing, the process demands precision and care.
The Dressing Challenge
Because CBN and diamond abrasives are extremely hard, dulled grains do not fracture naturally the way conventional abrasives do during self-sharpening. Instead, they must be mechanically removed through dressing to expose fresh, sharp cutting points. If dressing is inconsistent or imprecise, the wheel surface becomes uneven, leading to:
Wheel loading — chips and swarf embed in the wheel face, reducing cutting efficiency
Poor surface finish — inconsistent contact causes chatter marks and dimensional errors
Excessive heat generation — dull grains increase friction and thermal damage to the workpiece
Accelerated spindle wear — higher grinding forces stress the machine spindle unnecessarily
A dedicated electric diamond dresser solves these challenges by delivering the controlled, precise dressing action that superabrasive wheels demand.

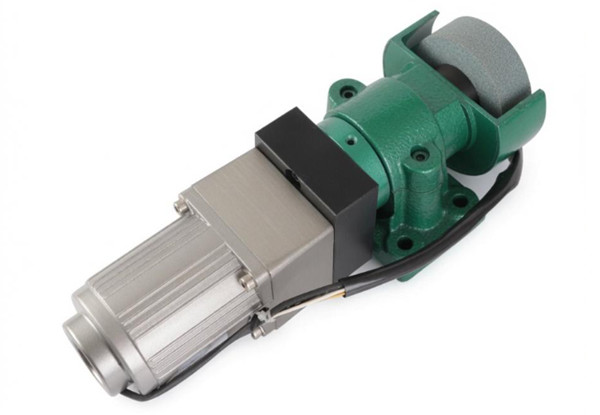

Key Features of Our Small Horizontal Electric Grinding Machine
More Superhard represents a compact yet highly capable solution for shops and manufacturers that need reliable, high-precision dressing of CBN and diamond grinding wheels. Designed specifically for small horizontal grinding setups, this electric dresser combines robust mechanical construction with precision engineering to deliver consistent, repeatable dressing results.
1. Precision Spindle with High-Accuracy Bearings
At the heart of our dresser is a precision-engineered spindle system mounted on high-accuracy bearings. This design ensures:
Minimal spindle runout — the dressing tool maintains a consistent path across the wheel face, delivering a true and平整 (flat) dressing surface
Smooth rotational stability — vibration is suppressed even during high-speed dressing cycles
Long service life — high-quality bearings and shaft materials resist wear over extended production runs
The precision spindle is critical because even microscopic runout can translate into surface quality defects on the finished workpiece. In precision grinding applications—where tolerances are measured in microns—spindle quality is non-negotiable.
2. Optimized Dressing Surface Quality
Our dresser is engineered to produce a dressing surface that is:
Flat and smooth — the wheel face is restored to a uniform, high-precision condition
Consistently accurate — dressing results remain stable across multiple dressing cycles
Efficient and durable — the dresser maintains its performance over long operating periods without degradation
This means that each time you dress your CBN or diamond wheel with this Series, you can expect the same level of surface quality as the first use—cycle after cycle.
3. Long Service Life and High-Speed Capability
The Series is built for demanding production environments:
Long operational lifespan — quality materials and robust construction ensure years of reliable service
High-speed processing support — compatible with high-speed grinding cycles when used with appropriate wheels
Low noise operation — the precision mechanical design minimizes operational noise, contributing to a safer, more comfortable workshop environment
For manufacturers who operate in high-mix, small-batch production environments, reliability is everything. Downtime for dresser maintenance or replacement directly impacts throughput and profitability.
4. Corrosion-Resistant Exterior Construction
The dresser features a high-quality corrosion-resistant outer layer that protects the unit in workshop environments where coolant, lubricants, and moisture are present. This protective coating:
Extends the unit's service life — shields critical mechanical components from corrosive agents
Reduces maintenance requirements — less frequent cleaning and maintenance downtime
Maintains appearance and precision — the outer shell retains its integrity and accuracy over time
5. Flexible Wheel Compatibility
The Series dresser supports a range of grinding wheel sizes, including:
Standard 75mm wheels — Φ75 × 25 × 12.5mm specifications for compact grinding applications
450 and 500 series wheels — compatible with longer grinding wheels for extended workpiece contact
This flexibility makes the Series suitable for diverse grinding setups, from small bench-top configurations to integrated CNC machining cells.
6. Seamless CNC Integration
Designed for modern precision machining workflows, the Series dresser integrates smoothly with CNC numerical control equipment. This compatibility enables:
Automated dressing cycles — dressing operations can be programmed as part of the CNC grinding routine
Consistent process control — eliminates the variability associated with manual dressing
Improved production efficiency — reduced setup times and more predictable cycle times
Grinding Wheel Specifications and Compatibility
Understanding the technical specifications of your grinding wheel dresser is essential for achieving optimal performance. Here are the key parameters for this Series:
Specification Detail
Grinding Wheel Size Φ75 × 25 × 12.5mm
Supported Wheel Series 450 and 500 series (for extended roller grinding)
Spindle System Precision spindle with high-accuracy bearings
Dressing Surface Quality Flat, smooth, consistently accurate
Operational Speed Supports high-speed processing
Noise Level Low-noise operation
Exterior High-quality corrosion-resistant layer
Application Focus CBN and diamond grinding wheel dressing
These specifications position the Series as an ideal choice for precision grinding applications that demand consistent, repeatable dressing results.
Applications:
Who Benefits from the our Series Electric Diamond Dresser?
Our Series is purpose-built for precision machining operations that work with small to medium-sized workpieces and superabrasive grinding wheels. Key application areas include:
Small Part Deburring
After machining operations, small components often have burrs and sharp edges that must be removed for safety, assembly, and quality reasons. The Series dresser restores grinding wheels to the exact profile needed for efficient, consistent deburring of small parts—reducing manual finishing labor and improving part quality.
Small Tool Sharpening
Cutting tools—including end mills, drills, and specialized small-form cutting tools—require precision grinding to maintain their geometry and cutting performance. The Series dresser ensures that CBN and diamond grinding wheels used in tool sharpening deliver the consistent edge quality and geometry that modern cutting tools demand.
Small-Size Workpiece Grinding
Precision grinding of small workpieces—such as components for medical devices, aerospace instruments, and precision mechanical assemblies—requires fine control and consistent wheel condition. The Series dresser enables manufacturers to maintain the exacting wheel surface conditions needed for micron-level tolerances.
CNC Grinding Cells
In automated manufacturing environments, the Series dresser serves as a reliable, programmable dressing solution that integrates directly with CNC grinding operations. Its compatibility with standard CNC interfaces makes it easy to incorporate into existing manufacturing cells without extensive retooling.
The Value of Choosing a Quality Electric Diamond Dresser
Investing in a high-quality electric diamond grinding wheel dresser is one of the most cost-effective decisions a precision machining operation can make. Here's why:
1. Protecting Expensive Superabrasive Wheels
CBN and diamond grinding wheels represent a significant investment. Proper, consistent dressing extends the useful life of these wheels dramatically—stretching your capital investment further and reducing the cost per ground part.
2. Achieving Consistent Part Quality
In precision manufacturing, variability is the enemy. A high-quality dresser eliminates the inconsistency of manual dressing techniques, ensuring that every part that comes off the machine meets the same exacting standards.
3. Reducing Overall Machining Costs
While the initial investment in a precision dresser may be higher than a basic manual solution, the long-term savings are substantial: fewer wheel replacements, reduced scrap rates, lower rework costs, and improved spindle life.
4. Enabling High-Speed Precision Grinding
Modern manufacturing demands both speed and precision. The Series dresser's ability to support high-speed grinding operations means you don't have to sacrifice throughput for quality.
Why Choose More Superhard?
More Superhard is a professional manufacturer and global supplier of superabrasive grinding solutions. With extensive experience in the development and production of CBN and diamond grinding wheels, dressing tools, and precision grinding equipment, More Superhard serves customers in over 50 countries across North America, Europe, Southeast Asia, and beyond.
When you choose More Superhard's Series electric diamond grinding wheel dresser, you benefit from:
Factory-direct pricing — competitive costs backed by China's advanced manufacturing capabilities
Technical expertise — deep knowledge of superabrasive applications built over decades
Customization options — flexible configuration to match your specific grinding requirements
Global logistics — reliable shipping and supply chain management for international customers
Responsive support — dedicated technical assistance to help you optimize your grinding processes
More Superhard's commitment to quality control, innovation, and customer success has made it a trusted partner for precision machining professionals worldwide who demand reliable performance and exceptional value.
Making an Informed Purchasing Decision
If your operation involves CBN or diamond grinding wheels and you need a compact, reliable, and precise electric dresser, the Series small horizontal electric grinding machine from More Superhard deserves serious consideration.
Before making your purchase, evaluate the following:
Compatibility — confirm that the wheel sizes and specifications match your current grinding setup
Integration requirements — assess how the dresser will connect with your CNC equipment
Throughput needs — verify that the dresser's speed capability meets your production cycle requirements
Support and warranty — understand the manufacturer's support terms and coverage
For detailed specifications, pricing, or to discuss your specific application requirements, reach out to More Superhard's technical sales team. Their application engineers can help you determine whether the Series dresser is the right fit for your precision grinding needs.
Conclusion
Electric diamond grinding wheel dressers are indispensable tools for any precision machining operation working with CBN or diamond grinding wheels. The quality of your dresser directly impacts wheel life, surface finish, dimensional accuracy, and overall production efficiency.
Our small horizontal electric grinding machine from More Superhard offers a compelling combination of precision engineering, robust construction, flexible compatibility, and long-term reliability—making it an excellent choice for shops and manufacturers seeking to optimize their superabrasive grinding operations without investing in oversized or overcomplicated equipment.
Ready to elevate your precision grinding performance? Contact More Superhard today to learn how our electric diamond dresser can transform your grinding workflow.
