Grinding wheels Dressing Spindle



Grinding wheels dressing spindle performance indicators:

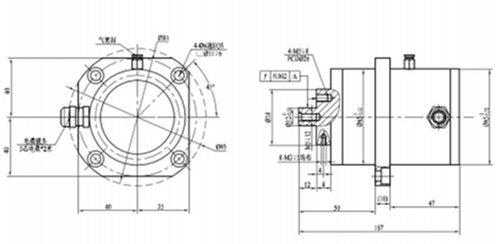

Installation size: φ65×107
Toolholder interface: φ12 external circle
Accuracy: Outside diameter and end runout ≯ 0.002mm
Vibration: ≯ 0.6mm/s in the full speed range (RMS)
Rated power: 0.8kW (S1)
Rated speed: 10000r/min
Rated torque: 0.76Nm
Rated voltage: 220V
Motor type: Permanent magnet synchronous motor
Lubrication method: grease lubrication
Sealing method: gas seal + mechanical seal
Bearing brand: NSK



Grinding wheels dressing spindle performance indicators:
Installation size: φ80×220
Toolholder interface: 1:5 external taper
Accuracy: Outside diameter runout ≯ 0.002mm
Vibration: ≯ 0.6mm/s in the full speed range (RMS)
Rated power: 2kW (S1)
Rated speed: 10000r/min
Rated torque: 1.9Nm
Rated voltage: 220V
Motor type: Permanent magnet synchronous motor
Lubrication mode: grease lubrication
Sealing method: gas seal + mechanical seal
Bearing brand: NSK
