► Cylindrical diamond wheel for grinding PCD reamer
►Enjoys strong sharpness
►High self-sharpening good surface finish after grinding
►High efficiency, long service life and stable quality
►Less dressing time
Cylindrical vitrified diamond grinding wheel is used for PCD tools grinding with large cylindrical grinding machines.The PCD tools in automotive industry include PCD profile cutters, PCD reamers and PCD milling cutters.
Application examples of precision measurement of PCD cutting edges
The precision machining process of grinding machines is often required to achieve very precise dimensional tolerances, geometric tolerances and extremely high surface quality. The cutting edge of the PCD tool is repeatedly measured, ground, measured, etc. The diameter tolerance can reach +/-1.5 microns, a very good result.

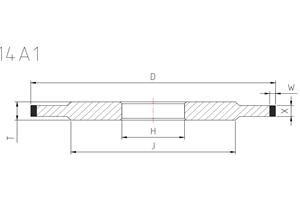

| Model | D (mm) | T (mm) | H (mm) | X (mm) | U (mm) |
| 3A1 & 14A1 | 300 | 20 | 127 | 10 | 10 |
| 350 | 20 | 127 | 10 | 6 | |
| 400 | 35 | 152.4 | 10 | 7 | |
| Other specification can be made according to customers requirement. | |||||
