Profile Rolls
Profile Rolls
Profile Rolls
Profile Rolls
Profile Rolls
Profile Rolls

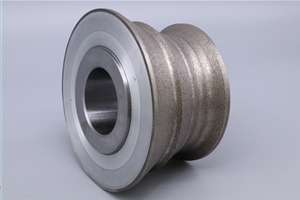

Form Rotary Diamond Roll

1.High production efficiency, long service life and low cost of dressing of individual parts.


2.It can maintain the stability of parts precision and the high qualified rate of products for a long time.


3.For some parts whose complex surface or other imitation dressing is difficult to meet the requirements, the Rotary dresser can obtain satisfactory results.


4.Easy to operate.


5.High utilization of CNC machine , easy to achieve automation and mass production.




Share:

Profile Rolls

Profile rotary diamond dressers are used to form grinding wheels for many different kinds of mass production.
Profile rolls transfer a defined shape to the grinding wheel rim, which is used to generate the workpiece profile. Usually the profile of the roll corresponds precisely to that of the workpiece but it can also be adapted to the specific grinding. Shorter dressing time and long tool life leads to high productivity and consistent process conditions. Many kinds of conventional grinding wheels, and in special cases super-hard grinding wheels, can be dressed with this dressing method.



Dressing with rotating diamond tools has been found to be a reliable technique in series and performance grinding processes, especially those applications using vitrified bonded grinding wheels.

More diamond dressing rolls are used successfully in the following applications:

•  the manufacture of ball and roller bearings,for grinding raceway profiles.
•  drive technology for manufacturing linear guides, ball screws, gear teeth or racks.
•  turbine industry for grinding the blades as well as the blade root and fir tree profiles.
•  the automotive and -supply industry for grinding camshafts, crankshafts and gear shafts, fuel injection components, piston rings, joints, ball screw drives etc.
•  grinding of precision tools such as taps, twist drills, milling cutters, reamers etc.
•  general mechanical engineering for grinding hydraulic or pump components.




Form rotary diamond roll




Specification:


Description
Technology Code Diamond distribution Diamond
density
Accuracy of working surface
Profile rolls Sintered TS Hand Setting Max Middle
      Randomness Max Middle
Profile rolls Electroplated SG Randomness Max Low
Profile rolls Reverse-plate US Hand Setting Max Middle
      Randomness Max High

Application:

Auto industry




Bearing industry
