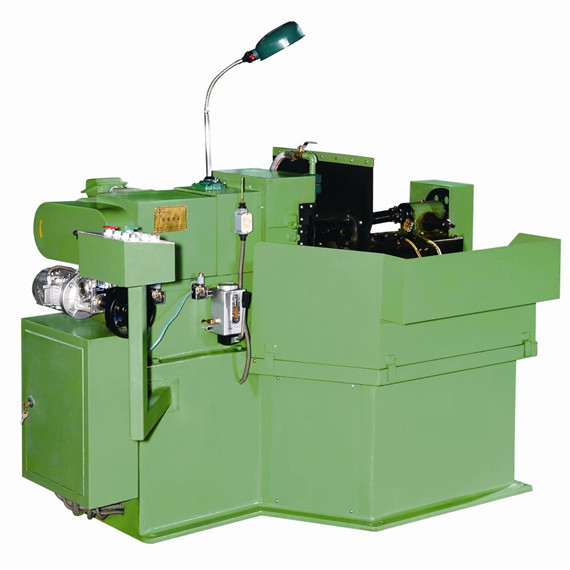

DJM110R Arc-Edge Grinding Machine
diamond wheel
DJM110R Arc-Edge Grinding Machine
diamond wheel

DJM110R Arc-Edge Grinding Machine

►Precision Arc-edge Grinding
►Heavy-Duty Performance for Tough Material
►Smart Angle Adjustment System
►Complete Grinding Package

We have optimized grinding wheels specifically formulated for blade applications - ensuring longer wheel life and superior surface finish.




Share:

High-efficency Arc-Edge Grinding Machine

Applications & Features of DJM110R Arc-Edge Grinding Machine

The DJM110R is designed specifically for grinding the arc-shaped cutting edges of various knives and shears. To accommodate different clamping setups and processing requirements, it is available in two models: left-hand (DJM110RW) and right-hand (DJM110RL). This machine meets the tooling and production needs of high-volume manufacturing.
Typical Applications Include:

►Pure arc-shaped blades
►Large and small garden shear blades
►Arc blades for food shredders and processors
►Arc blades for soymilk machines
►Hexagonal and octagonal arc disc blades for textile cutting
►Various types of arc-profiled industrial and craft blades

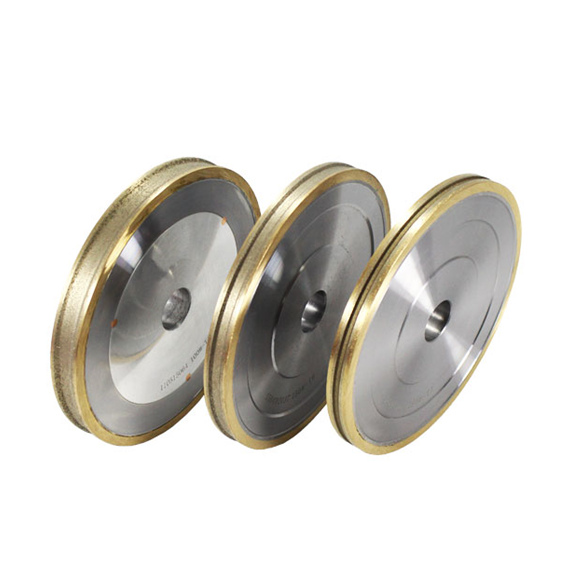

Metal Bond Diamond wheels can be used for processing high quality side.





Application:
For rough grinding and fine milling of auto glass. Mainly used for shape edging machine, profiling milling machine,CNC equipment etc(such as Bystronic, Bando machine).

Advantages:
1.Accurate Aperture
2.High pass rate
3.Even smoothness
4.Long service life

Specifications of DJM110R Arc-Edge Grinding Machine

Parameter Specification
Arc Radius R25–75 mm
Arc Rotation Angle 30°–110° (90° standard setting)
Workpiece Edge Angle 0°–40°
Grinding Speed (Stepless Adjustment) 1–5 r/min
Production Capacity 4,000–5,000 grindings per 8 hours
Grinding Wheel Size Ø265 × 125 mm; 28 m/s linear speed
Main Motor Power 3.0 / 5.5 kW
Machine Dimensions (L × W × H) 1600 × 1200 × 1200 mm
