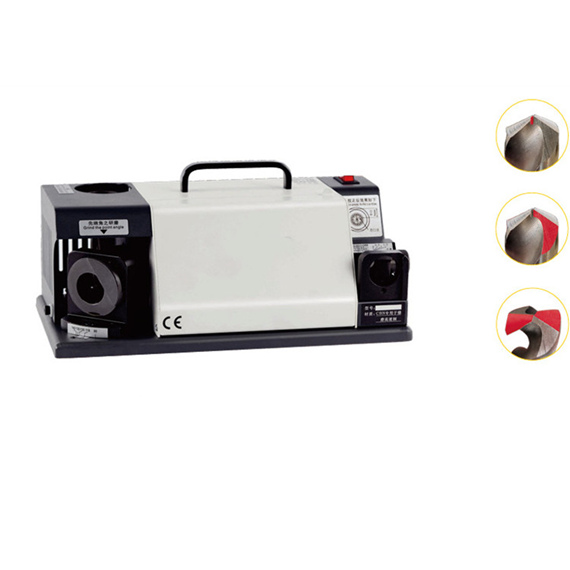

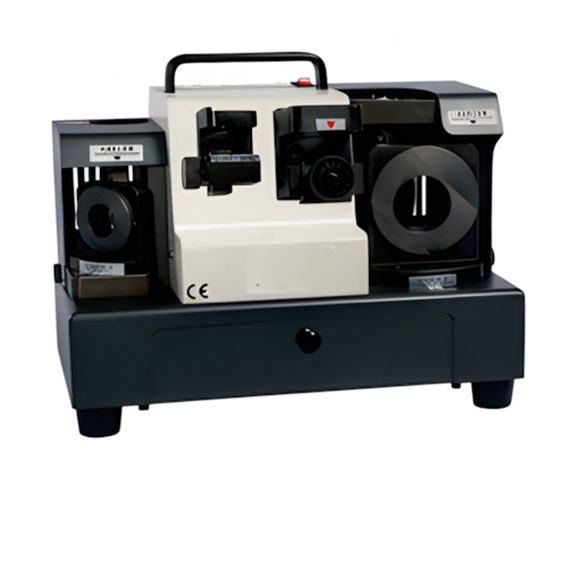

This series is specifically designed for optimised stainless steel drilling and deep-hole machining applications. Featuring CNC servo control and a modular grinding wheel system, it is capable of meeting the regrinding requirements for drill bits made from a variety of materials, including high-speed steel, tungsten carbide and alloy steel.
.jpg)
Core Technical Advantages：
Precise Grinding Control
Adjustable rake angle range: Continuously adjustable from 90° to 140°, accommodating different materials and hole depth requirements
Grinding accuracy: Utilises a high-rigidity spindle structure and precision guideways to ensure consistency of the drill bit cutting edges

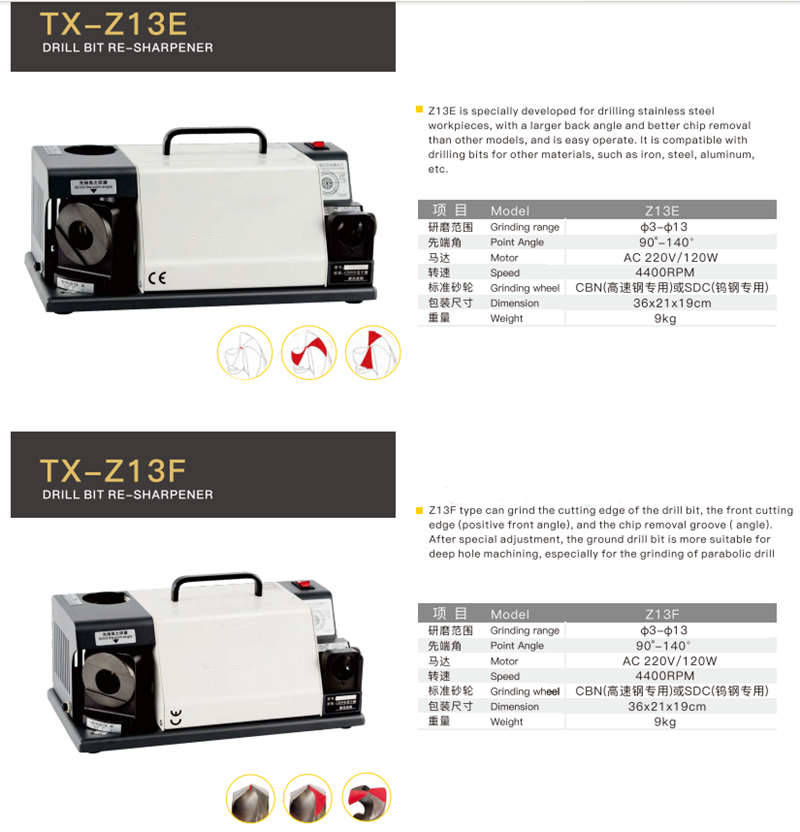

Differentiated positioning of the two models:
TX-Z13E: Optimised rake angle design to enhance chip evacuation performance for difficult-to-machine materials such as stainless steel and titanium alloys
TX-Z13F: Supports regrinding of the front cutting edge (positive rake angle) and chip flutes, optimised specifically for deep-hole drilling
Modular Grinding Wheel System
Standard grinding wheel configurations:
CBN grinding wheel: Suitable for high-speed steel (HSS), offering high grinding efficiency
SDC grinding wheel: Suitable for tungsten steel (carbide), featuring high wear resistance
Wheel Dressing Function: Equipped with an automatic wheel dressing device to extend wheel life and maintain stable grinding accuracy
Intelligent Operating Experience
CNC Servo Control: Combines knobs and a touchscreen to enable rapid setting and storage of grinding parameters
Transparent Guard: Fitted with a safety guard to ensure operator safety whilst facilitating observation of the grinding process
Portable Handle Design: Integrated handle on the top of the machine body for flexible movement within the workshop and easy station changes
Quality Certification and After-Sales Support
CE Certification: Products comply with EU safety standards and have passed rigorous electrical and mechanical safety tests
Quality Assurance: Key components are manufactured from high-quality materials to ensure long-term, stable operation of the equipment
Technical Support: We provide professional operational training and remote technical guidance, and respond swiftly to customer requirements
