1. Overview of Alumina Ceramics and Precision Grinding Challenges
Alumina ceramic (Al₂O₃) is one of the most widely used advanced ceramic materials in modern industry. Thanks to its extreme hardness, high wear resistance, excellent chemical stability, low thermal expansion, and outstanding high‑temperature performance, alumina ceramics are irreplaceable in many critical applications, including ceramic seals, valve components, aerospace structural parts, electronic insulators, medical ceramics, and automotive precision parts.
Among different alumina grades, 92% high‑purity alumina is the most common choice for sealing components. It offers a balanced combination of mechanical strength, dimensional stability, and cost‑effectiveness. However, 92% alumina is also a hard and brittle material with a hardness of approximately 1150 HV, which creates significant challenges in precision grinding.
Key Challenges in Alumina Ceramic Double‑Sided Grinding
- High hardness and brittleness: Easy to generate chipping, cracking, and edge defects during grinding.
- Ultra‑precision requirements: Sealing parts demand flatness ≤ 0.0005 mm, parallelism ≤ 0.002 mm, and mirror surface finish Ra ≤ 0.02 μm.
- Double‑sided simultaneous grinding: Requires perfect parallelism between upper and lower grinding wheels.
- Mass production consistency: Stable quality for 100–200 pieces per cycle is critical.
- Thermal stress risk: High‑speed grinding can cause thermal damage, surface discoloration, or micro‑cracks.
Conventional silicon carbide or aluminum oxide grinding wheels are unable to meet these requirements. They wear quickly, lose flatness rapidly, and cannot achieve mirror finish. Therefore, vitrified bond diamond double disc grinding wheels have become the gold standard for high‑precision alumina ceramic grinding.

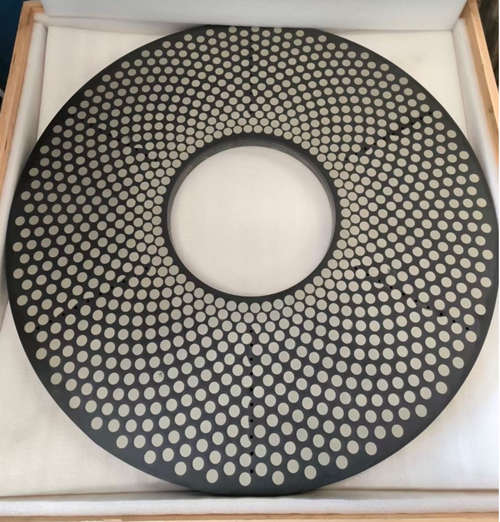

A vitrified bond diamond double disc grinding wheel is a high‑precision superabrasive tool designed specifically for simultaneous double‑sided grinding of flat, thin, or circular components. It consists of three core elements:
- High‑grade synthetic diamond grains: Uniform grit size, high hardness, sharp cutting edges, and excellent wear resistance.
- Vitrified (ceramic) bond: High rigidity, excellent dimensional stability, strong diamond retention, and good heat dissipation.
- Precision metal core: Ensures flatness, parallelism, and rigidity under heavy grinding loads.
Why Vitrified Bond Is Ideal for Alumina Ceramic Grinding
- High rigidity and stability: Maintains wheel flatness even under heavy pressure (150 g/cm²).
- Excellent heat dissipation: Reduces thermal stress and prevents ceramic cracking.
- Strong diamond retention: Longer wheel life and consistent cutting performance.
- Controllable porosity: Improves coolant flow and chip removal.
- Ultra‑fine finishing capability: Enables mirror surface finish Ra ≤ 0.01 μm.
Compared with resin bond and metal bond diamond wheels, vitrified bond wheels provide the best balance between precision, stability, finish quality, and tool life for hard brittle ceramics.

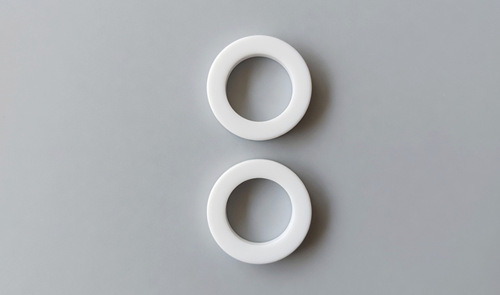

3. Workpiece Specifications: 92% Alumina Ceramic Seals
The case focuses on high‑precision 92% alumina ceramic sealing rings used in mechanical sealing systems.
Detailed Workpiece Parameters
- Component type: Alumina ceramic seal ring
- Material: 92% high‑purity alumina ceramic (Al₂O₃)
- Hardness: 1150 HV
- Dimensions: Outer diameter 22 mm × Inner diameter 17 mm × Thickness 4.5 mm
- Stock removal: 0.2 mm total (both sides combined)
- Batch size: 150 pieces per grinding cycle
- Application: Mechanical seals, pumps, valves, and fluid handling equipment
These small, thin, and flat ceramic rings require extremely tight geometric tolerances to ensure sealing performance, leakage prevention, and long service life in high‑pressure and high‑temperature environments.
4. Grinding Machine & Complete Process Parameters
The customer uses a Speedfam DSM 9B‑5FH double disc grinding machine, a high‑precision industrial machine widely used for mass production of flat components.
Machine Specifications
- Machine model: Speedfam DSM 9B‑5FH
- Type: Vertical double disc grinder
- Workpiece carrier: Sun gear and planet carrier system
- Max workpiece diameter: 200 mm
- Grinding area: 9B (9 inches)
Process Parameters (Optimized for 92% Alumina)
- Grinding pressure: 150 g/cm²
- Bottom plate speed: 70 RPM
- Top plate speed: 35 RPM
- Sun gear speed: 25 RPM
- Total grinding cycles: 28 cycles
- Material removal rate: 0.025 mm per minute
- Total grinding time: Approximately 8 minutes per batch
These parameters are carefully optimized to balance grinding efficiency, surface quality, and ceramic edge integrity. The differential speed between upper and lower plates ensures uniform material removal on both sides.
5. Final Precision Grinding Results
After grinding with our vitrified diamond double disc grinding wheels, the 92% alumina ceramic seals achieved industry‑leading precision results:
Measured Performance Data
✅ Flatness: 0.0003 mm (300 nanometers)
✅ Parallelism: 0.001 mm (1 micrometer)
✅ Surface finish: Mirror finish, Ra ≤ 0.01 μm
✅ Edge quality: Zero chipping, zero cracking
Dimensional consistency: All 150 pieces within tolerance
✅ Surface texture: Uniform, scratch‑free, defect‑free
These results exceed typical industry standards and meet the strictest requirements for high‑end mechanical seals, aerospace ceramics, and medical components.
6. Advantages of Our Vitrified Diamond Double Disc Grinding Wheels for Ceramics
1. Ultra‑High Precision Capability
Achieve sub‑micron parallelism and nanometer‑level flatness for thin and brittle ceramic parts.
2. Mirror Surface Finish
Vitrified bond with ultra‑fine diamond grit delivers Ra ≤ 0.01 μm mirror finish without additional polishing.
3. Long Tool Life
High‑grade diamond grains and strong vitrified bond ensure 3–5× longer life than conventional wheels.
4. Stable Mass Production
Consistent performance for 150+ pieces per cycle, reducing scrap rate and downtime.
5. Reduced Chipping and Cracking
Cool grinding action and uniform grain distribution minimize edge defects in brittle alumina.
6. Cost‑Effective Solution
Fewer wheel changes, lower scrap rate, and less rework lead to significant long‑term cost savings.
7. Industrial Applications of Vitrified Diamond Double Disc Grinding Wheels
Our vitrified diamond double disc grinding wheels are widely used across industries requiring high‑precision flat components:
1. Ceramic Sealing Industry
- Alumina ceramic seals, silicon carbide seals, zirconia seals
- Mechanical seals for pumps, valves, compressors, and hydraulic systems
2. Advanced Ceramics Manufacturing
- Alumina, zirconia, silicon carbide, silicon nitride components
- Ceramic insulators, substrates, and structural parts
3. Electronic & Semiconductor Industry
- Ceramic substrates, insulating rings, and precision ceramic parts
4. Aerospace & Defense
- High‑precision ceramic components for aircraft, engines, and military equipment
5. Medical Device Industry
- Zirconia and alumina ceramic implants, prosthetic components
6. Automotive Industry
- Ceramic valve seats, sensor components, and precision ceramic parts
- Customized design: Tailored diamond grit, concentration, and bond hardness for your ceramic material
- Strict quality control: 100% flatness and parallelism inspection before delivery
- Advanced manufacturing: High‑temperature sintering and precision balancing
- Global customer support: Process optimization, on‑site testing, and technical consultation
- Proven performance: Successfully used by ceramic manufacturers worldwide
9. Conclusion
Precision grinding of 92% alumina ceramic seals demands advanced superabrasive tools and optimized processes. Our vitrified bond diamond double disc grinding wheels provide the ideal solution, delivering 0.0003mm flatness, 0.001mm parallelism, and mirror finish while ensuring stable mass production and long tool life.
For manufacturers of ceramic seals and advanced ceramic components, choosing the right grinding wheel directly determines product quality, production efficiency, and profitability. Our vitrified diamond double disc grinding wheels help you achieve higher precision, better consistency, and lower production costs.
