1. Industry Background & Key Challenges in Tungsten Steel Internal Grinding
Tungsten steel (carbide) is widely used in precision molds, tooling, medical parts, and aerospace components due to its extreme hardness, wear resistance, and high dimensional stability. Mirror-finish internal grinding is a critical process to meet tight tolerance and ultra-smooth surface requirements.
However, many manufacturers struggle with:
- Intermittent dotted scratches on inner surfaces
- Poor surface consistency after polishing
- Excessive grain shedding from grinding wheels
- Unstable performance of polishing compounds
These issues directly lead to high rejection rates, rework costs, and delayed delivery.

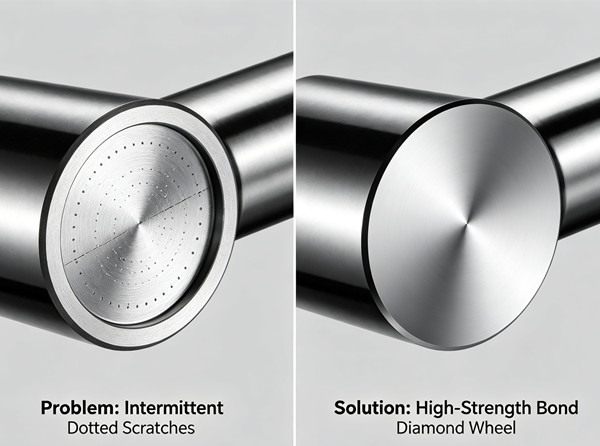

2. Client Problem: Dotted Scratches in Tungsten Steel Mirror Internal Grinding
A precision machining customer specializing in high-end carbide components encountered persistent quality defects during internal grinding:
- Workpiece: Tungsten steel (carbide) requiring mirror inner surface
- Defect: Intermittent dotted scratches visible after polishing
- Root cause analysis:
- Original internal grinding wheel: insufficient bond strength and low hardness
- Weak bond → easy grain detachment → free abrasive particles → surface scratches
- Rough grinding wheel easily loses grains by hand rubbing, confirming quality issues
- Supplier denied the problem, leaving the customer without a reliable solution
3. Polishing Compound Performance Issue
The client also tested different polishing compounds for final finishing:
- Domestic brands (Sanmo, Zhengpeng): 0.5μm compound showed poor results
- Japan Sakura: 2.5μm compound performed better unexpectedly
- Our analysis: Inconsistent results likely caused by abrasive purity, particle uniformity, carrier fluid quality, and compatibility with tungsten steel
We will send our high-purity, uniformly graded polishing compound samples for independent testing and verification.
4. Our Custom Solution for Scratch-Free Tungsten Steel Grinding
To eliminate scratches and improve surface quality, we recommended our high-strength bond diamond internal grinding wheels:
✅ Enhanced Bond System
- Higher bond hardness and toughness
- Stronger diamond grain retention
- Minimize grain shedding and free abrasives
✅ Optimized Diamond Grit & Distribution
- Uniform grain size for consistent cutting
- Premium diamond grit for long life and sharpness
- Tailored for hard tungsten steel materials
✅ Mirror Finish Guarantee
- Eliminate intermittent dotted scratches
- Achieve Ra ≤ 0.02μm mirror surface
- Stable performance in mass production
5. Why Choose Our Diamond Wheels & Polishing Compounds
- Scratch-free grinding: No free grain contamination
- High precision: Consistent mirror finish for critical dimensions
- Long service life: Reduced wheel changes and downtime
- Cost-effective: Lower rejection and rework rates
- Full support: Custom wheel design + polishing compound matching
