12V9 Resin bond 150MM CBN Diamond grinding wheel discs for tct circular saw blades sharpening machine

Moresuperhard CBN wheel is suitable for high precision formed wheels. Such as grinding of high precision gear, worm gear hob, gearbox shafts, planetary reducers (sun gear, planetary gears), worm reducers (yin and yang rotors), stator inner teeth and outer rotor grinding.

Resin grinding wheel is mainly used for grinding brittle and hard metal materials:

① high manganese steel, high carbon steel, stainless steel, die steel, bearing steel;

② high chromium, nickel, molybdenum and other heat-resistant and high-hardness alloy steel;

③ chilled cast iron (HS80 ～90);

④ All kinds of hardened steel (HRC55～65); Impellers, volutes, guard plates, sheaths, etc.), molds, and cylinder liners; solves the cutting of high-hardness and difficult-to-machine materials in all walks of life, and can improve work efficiency, greatly save processing time and electricity, and obtain huge economic benefits.

► Applications: polishing and faceting gemstones (jade, crystal, agate), spinel, sapphire, jewelry, glass artwork, and precision machining industry
► Bonded: resin bond, electroplated bond
► The grain size up to #15000
Features
Backed by a strong Aluminum base, these laps have a sturdy construction and last long.
Perfect for polishing soft gemstones.
Perfectly flat and parallel to the surface to ensure great balance and accuracy.

► Edge wheel for silicon and sapphire wafer edge grinding. A small diameter wheel is used for notch grinding
► Metal diamond wheel for rough grinding to get an accurate edge profile
► Resin diamond wheel for finish grinding to get good surface roughness

►It is used for grinding and cylindrical grinding of cemented carbide measuring tools, tungsten steel, high-speed steel, alloy steel, glass, precious stones, jade, jade, amber, beeswax, magnetic materials, ceramics, molds, etc..
►And can also be used for plunge grinding and forming Grinding is an ideal tool for grinding hard and brittle materials and hard alloys due to the characteristics of diamond abrasives (high hardness, high compressive strength, and good wear resistance).

Resin bond diamond & CBN wheels are mainly used for small-diameter tungsten, stainless steel or HSS drills, micro drills, and end mills used in electronics, medical technology, and the automotive industry.
Applications: face grinding, top grinding, flank grinding, hollow tooth grinding and re-sharpening for tungsten carbide tipped saw blades and one-piece HSS saws
Models: 4A2, 4BT9, 11A2, 15A2, 12V2, 14F1, etc

A resin grinding wheel is mainly used for grinding brittle and hard metal materials:

① high manganese steel, high carbon steel, stainless steel, die steel, bearing steel;

② high chromium, nickel, molybdenum and other heat-resistant and high-hardness alloy steel;

③ chilled cast iron (HS80 ～90);

④ All kinds of hardened steel (HRC55～65); Impellers, volutes, guard plates, sheaths, etc.), molds, and cylinder liners; solves the cutting of high-hardness and difficult-to-machine materials in all walks of life, and can improve work efficiency, greatly save processing time and electricity, and obtain huge economic benefits.

• To shape grinding wheels in the shortest possible time
• Profiling of the grinding wheel in only one operation using the plunge-cut dressing method
• Extreme accuracy, even with highly complex profile contours
• Highest cost-effectiveness

• the manufacture of ball and roller bearings,for grinding raceway profiles.
• drive technology for manufacturing linear guides, ball screws, gear teeth or racks.
• turbine industry for grinding the blades as well as the blade root and fir tree profiles.
• the automotive and -supply industry for grinding camshafts, crankshafts and gear shafts, fuel injection components, piston rings, joints, ball screw drives etc.
• grinding of precision tools such as taps, twist drills, milling cutters, reamers etc.
• general mechanical engineering for grinding hydraulic or pump components.

Application: sculpturing, dressing and internal grinding carbide, ceramic,glass, stones, marble,etc

Types of internal grinding wheel:
* vitrified cbn internal grinding wheel
* resin diamond & cbn internal wheel
* electroplated diamond mounted points
* abrasive internal grinding wheel

Peripheral Diamond Grinding wheels are used for indexable inserts grinding.
Peripheral Grinding tungsten carbide inserts, ceramic inserts, cermet, pcd and cbn inserts
Model: 6A2T, 6A2M, 11A2B, 12A2T
Bonded: resin bond and vitrified bond

► Steady drilling with better smoothness
► Free drilling and long lifespan
► No damage to the edge
► High drilling efficiency

Last week, Moresuperhard participated in the 2nd conference on ceramic technology for semiconductor industry.

Resin Bond Grinding Various Special-Shaped CBN Wheels for high-speed steel milling cutter grinding.
Resin bond diamond CBN grinding wheels are suitable for grinding and resharpening carbide or high-speed steel end mills, which is designed for end mill manufacturers or resharpening service providers.

Resin diamond grinding wheels are used for round cutting tools on cnc machine, including drills, milling cutters, reamers, taps, etc. The main materials are cemented carbide, high-speed steel, stainless steel and so on.
Model: 1a1, 12v9, 11v9, 12a2, 1v1, 14a1, 6a2, etc
Bonded: resin bond, metal bond and hybrid bond

Diamond grinding wheels for grindingTungsten Carbide, Ceramics, Composites, Stainless Steel, HS Steel, Titanium Nitride, Zirconia / Aluminum Oxide, Ferrites, Powdered Metals, Sintered Silicon Carbide, Titanium Graphite Composite

Resin bond diamond mounted point is an abrasive tool used for fast stock removal which lasts longer for about four times compared to conventional aluminum oxide mounted points. This makes it a very efficient tool as its increases productivity and clearly cleans more parts in less time. This mounted point is mainly used for machining tungsten carbide cutting tools, optical glass, gem, semi-conductor materials, non-ferrous materials, ceramic, magnetic materials, silicon, glass, quartz, thermal spraying alloy, and non-metallic material grinding.

► Application: harder alloys, ceramics and cermet.
► Bonded: resin bond

►High Precision CNC lnternal Grinder Models:
-IG150
-IG150 I (Elongated)

►Broad Applications:
The inner cylinder, the inner cone and the end face of the step shaft：
– Transmission gear hole grinding
– Air conditioning warping
– Bearing
– Ring gauge

Moresuperhard’s vitrified CBN grinding tools with highest grinding layer for extended wheel life on the machine. Due to the special manufacturing process very high grinding layers on wheels are possible to shorten the setup-costs in the grinding process.

Features of vitrified CBN grinding wheels:
► longer wheel life
► shorter grinding cycle times
► automated grinding production capabilities with wheels dressed right on the grinder
Vitrified CBN products are ideal for steel and ferrous alloy grinding applications in automotive, aerospace, medical, production tooling, etc. They are excellent thermal conductors and do not react with ferrous materials during the grinding process like diamond does.

►Diamond coated head. Wear-resistant, close to the sand surface, not easy to fall off, maintains sharpness, long wear.
►Its surface can be cleaned and restored to regain its original shape by using a dressing stone.

►Can be installed on the electronic grinder, hanging mill and hand electric drill (not included here).
►Used for sculpturing, dressing, precision grinding and internal grinding carbide in ceramic, glass, precious stone, alloy and many other abrasive materials.
►Adding water when using the Diamond grinding head is good, can improve the sharpness and the life of the grinding needle.

Electroplated grinding wheels is an excellent option when an aggressive amount of stock removal is required.

A single, uniform layer of diamond or CBN crystal is electroplated to a precision machined steel surface.

► Application: grinding various precision ceramic

► Bonded: resin bond & vitrified bond

► Correct choice of grain size and bonded
* Usually rough grinding uses D126, D91 (Resin bond &Vitrified bond)
* Semi-rough grinding uses D76, D64, D54, D46 (Resin bond & Vitrified bond)
* Semi-finish grinding uses D25, D20 (Resin bond &Vitrified bond)
* Finishing grinding uses D15 (Resin bond)
* Super finishing uses D7, D1 (Resin bond)

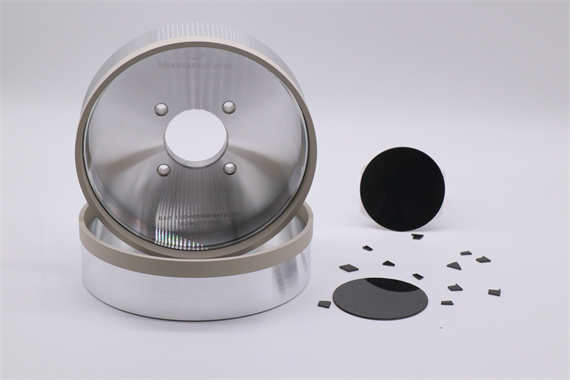

► Customized PCD & CBN & CVD cutting, grinding, sharpening, brazing, regrind and retipped solution and service
► Bonded: vitrified bond, resin bond, metal bond
► Model: diamond cup wheel (6A2, 11A2, 1A2)

► Width: 3mm – 20mm
► Grain Size up to super finish #3000
► Cutting-edge chipping <5 μm

►Ideal for difficult to grind steel
►Faster stock removal cooler cutting
►Superior form holding

►Excellent Grinding Action
►less apt to experience loading, and they dress easily for added convenience
►Convenience and Ease of Use
►Grinding abilities apply to both wet and dry tasks on processing objects such as harden steel, glass, ceramic, carbide alloys, ferrite, refractories, semi conductors, and other electrical carbon products.

Bonded of Grinding Wheel: resin diamond & cbn wheel, electroplated diamond & cbn wheel
4 axis CNC tool grinding wheel is used for grinding , sharpening and regrinding drill (2 tips, 3 tips), milling cutter, tap (2 tips, 3 tips, 4tip), reamer (4tips, 6tips, 8tips), carving cutter and gun drill, etc
