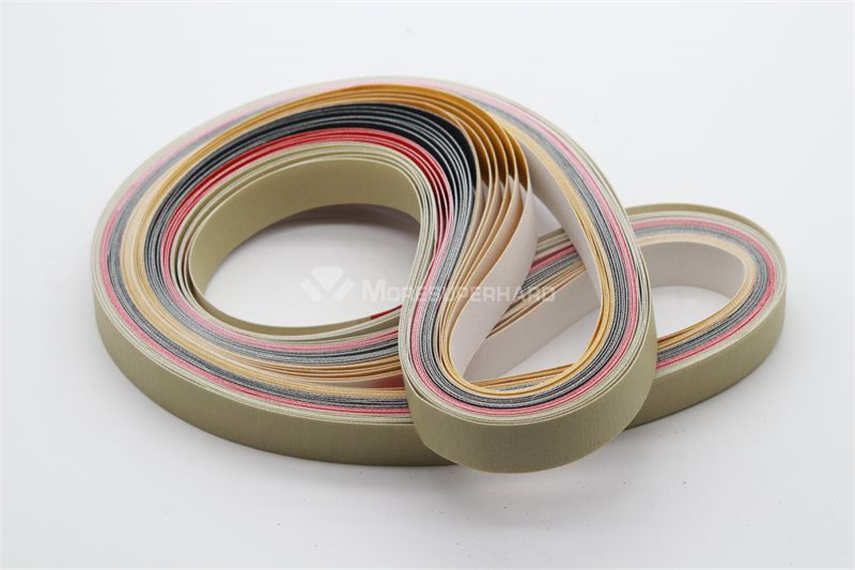

► Bond: Metal nickel plating electroplated bond & Resin bond (resin bond also consists of flexible and hard type)
► Length: 150mm – 5000mm
► Width: 5mm – 350mm
► Grit: #60,#100,#120,#200,#400,#800,#1500,#2000,#3000,#5000
1. High production efficiency, long service life and low cost of dressing of individual parts. 2. It can maintain the stability of parts precision and the high qualified rate of products for a long time. 3. For some parts whose complex surface or other imitation dressing is difficult to meet the requirements, the Rotary dresser can obtain satisfactory results. 4. Easy to operate. 5. High utilization of CNC machine, easy to achieve automation and mass production.
►Excellent Grinding Action ►less apt to experience loading, and they dress easily for added convenience ►Convenience and Ease of Use ►Grinding abilities apply to both wet and dry tasks on processing objects such as harden steel, glass, ceramic, carbide alloys, ferrite, refractories, semi conductors, and other electrical carbon products.
Moresuperhard provides qualified services For DANOBAT’s Precision Grinding Machines. External grinding models：CG, PG, LG, HG, WT, mBTG-DANTIP, Internal grinding models: ID, IRD,ILD, IED.
► Vitrified diamond/CBN grinding wheels ► Resind diamond/CBN grinding wheels ► Conventional grinding wheels ► Diamond dressing wheels
CBN wheels outperform common stone wheels in many ways. Features: Made from a steel core and will run smoother on all grinders. NO WEAR – CBN wheels retain their shape and size so no resetting of your jigs. FINE AND EVEN FINISH TO WOODTURNING TOOLS – 180 grit gives a fine and even finish to your tools with only light pressure required. NO BURNT OR BLUE EDGES – Cool cutting provides no burnt or blue edges with a smooth grinding experience from 100 to 3500 RPM. NO DRESSING OR CONDITIONING REQUIRED – A CBN wheel is designed for sharpening high speed steels and will withstand the friction from grinding with much less heat produced than a diamond wheel.
Usage: 1. Especially used for internal grinding of complex workpieces. 2. Used for dressing abrasive tools. 3. Used for processing industrial ceramics. 4. Suitable for processing and polishing cemented carbide, various molds, stone, glass, jade, gems, teeth, bones, high-speed steel and various high-hardness materials.
Vitrified bond CBN Grinding Wheel is suitable for high-efficient heavy grinding of a camshaft of automobile parts. The wheel speed is 80m/s-160m/s, designed to be used on CNC Cam Grinders like Toyoda, Schaudt, Landis, Junker, etc. Application: inner grinding of bearing, compressor, CVJ ball-cage, hydraulic tappets, universal joint, stator and rotor.
MORE SUPERHARD vacuum brazed tools including vacuum brazed diamond grinding wheels, vacuum brazed diamond saw blades, vacuum brazed diamond drill bits, vacuum brazed diamond grinding discs are used for foundry, metal working, composites, automotive.
► Application: grinding various precision ceramic
► Bonded: resin bond & vitrified bond
► Correct choice of grain size and bonded * Usually rough grinding uses D126, D91 (Resin bond &Vitrified bond) * Semi-rough grinding uses D76, D64, D54, D46 (Resin bond & Vitrified bond) * Semi-finish grinding uses D25, D20 (Resin bond &Vitrified bond) * Finishing grinding uses D15 (Resin bond) * Super finishing uses D7, D1 (Resin bond)
Resin bond diamond grinding wheel for grinding and resharpening carbide drills; Resin bond Cubic Boron Nitride grinding wheel for grinding and resharpening high-speed steel drills. Advantages: High grinding efficiency； High material removal rate； High tools surface finish and good cutting edge quality； The shape of the grinding wheel is kept well； High machining accuracy； Low loss, low thermal damage, no burn of workpiece； Wear-resistant, long working life；
Main features of CNC profile grinding wheels Perfect processing quality High efficient grinding with fast feeding Good wear resistance and shape keeping Applications of cnc grinding wheel Mainly used for grinding digital controlled cutting tools such as tungsten carbide, high speed steel, stainless drill, mill and rimer. Type: 1a1, 14a1, 11v9, 1v1, 12v9, 14f1
Resin Bond diamond and CBN grinding wheels are made of either phenolic or polyimide resins. Pressure and heat are utilized to bond the resin to our grinding wheel cores. Moresuperhard’s phenolic bonded wheels can be utilized in dry or wet applications. Our polyimide bonded wheels are best utilized in water or oil-based coolants for improved form holding, typically required in CNC tool and cutter applications. Moresuperhard produces wheel sizes from 1in. (25mm) to 28 inches (720mm) and grit sizes from 40 to 3000 are available.
The diamond resin grinding wheel has a good polishing effect. The grinding wheel is sharp and not easy to be blocked during grinding. The specific characteristics are as follows: 1. The grinding efficiency is high, and the grinding wheel consumption is relatively slow; 2. Good self-sharpening, low heat generation during grinding, not easy to block, reducing the phenomenon of work burns during grinding; 3. The grinding wheel has a certain elasticity, which is conducive to improving the roughness of the workpiece surface. It is mainly used for fine grinding, semi-fine grinding, knife grinding, polishing and other processes; 4. The diamond resin grinding wheel is cured at low temperature, the production cycle is short, and the equipment and supply process is relatively simple; due to the fluidity of the resin, it is easy to form a grinding wheel with complex surfaces
Moresuperhard provides qualified services For DANOBAT’s Precision Grinding Machines. Centerless grinding models：ESTARTA-175 / ESTARTA-250, ESTARTA-400 / ESTARTA-650
► Resind diamond/CBN grinding wheels ► Conventional grinding wheels ► Diamond dressing wheels
Resin diamond wheels for grinding tungsten carbide and HSS steel. Such as drills, end mills, reamers, micro drills, mini end mills and burrs, etc Type: 1A1,1V1,1A1R,6A2,6A9,3A1,9A1,11V9,12A2,14A1 etc. Moresuperhard has more than 15 years’ experience in producing diamond and cbn grinding wheels.
● Natural granite machine bed has a good shock absorption and heat resistance ability, high-hardness and strong anti-abrasion property. ●Automatic full-directionally internal measuring system for both work piece and grinding wheel are efficient and accurate, which ensure the tool machining stability. ● Individualized control panel is visually simple.
► Correct choice of grain size and bonded * Usually rough grinding uses D126, D91 (Resin bond &Vitrified bond) * Semi-rough grinding uses D76, D64, D54, D46 (Resin bond & Vitrified bond) * Semi-finish grinding uses D25, D20 (Resin bond &Vitrified bond) * Finishing grinding uses D15 (Resin bond) * Super finishing uses D7, D1 (Resin bond)s diamond & CBN wheels for carbide, HSS, PCD, PCBN machining according to customers’ requirements and FEPA Standard.
►High Precision Centerless Grinding Machines Models: -FX12CNC -FX18CNC-4
►Broad Applications: -Automotive Industry: shafts, pins, valves, and bearings -Aerospace Industry: turbine shafts, landing gear components, and fuel system parts -Medical Industry -Tool and Die Industry -Bearings industry -Tool and Die Industry: cutting tools, punches, and dies with high accuracy and surface quality
High Precision with High Rigidity Body Structure
►IP65 waterproof, suitable for variety of environments. ►High efficiency LED chip with PC lens, high lumen output and lighting evenness. ►Arms with flexible joints, convenient to control lighting direction. ►Variety of input voltages optional to fit different applications,AC100-240V 50/60Hz, AC/DC12V, AC/DC24V.
Resin/virtified/metal bond diamond wheel for silicon wafer can be used for the Japanese ,German, American, Korean and other grinders . Such as Okamoto , Disco, Strasbaugh and others grinding machine.
