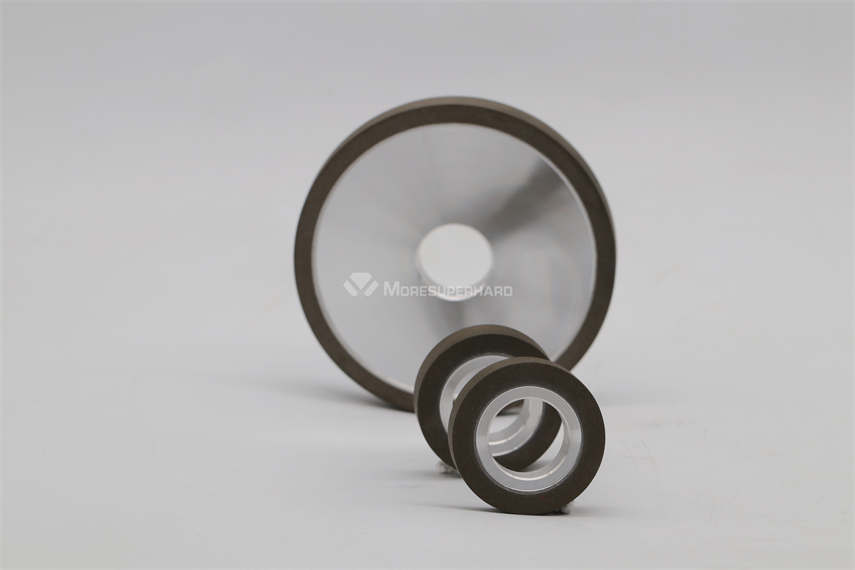

Resin diamond & cbn wheels used for machining tungsten carbide cutting tools, ceramic ,magnetic materials, silicon ,glass ,quartz and high speed steel,etc
Resin bonded diamond wheels are mainly used for grinding carbide, non-metallic material, crispy hard alloy, non-metallic mineral, such as carbide, ceramic, agate, silicon,magnetic,self-fluxing alloy material,PCD & PCDN, wear resistant cast iron, stone materials
Hob cutter can be used for machining gears, sprockets, turbines and splines. The advantages of gear hob cutter grinding cbn wheel Grinding wheel uses end grinding, the outer circle is very thin, can be ground to the bottom of the edge. good wear resistance and low loss dry grinding and wet grinding.
Resin bond diamond cylindrical grinding wheels for the oil and gas industry, providing precise solutions for resin bond diamond cylindrical grinding wheel for PCD/carbide, wear parts and gage blocks for oil & gas drill manufacturing.
Resin diamond grinding wheels are widely used in cylindrical grinding semi-precision grinding, fine grinding and polishing of cemented carbide tools, PDC cutter, PDC drill bits, ceramics, magnetic materials, crystals and other materials
Resin bonded diamond grinding wheels for peripheral grinding of silicon ingots, or processing the outer surface of silicon ingots and to make orientation flat. Materials used in semiconductors and electronics parts, automobiles and photovoltaic industry. Types of these materials are varied including silicon, sapphire, and gallium arsenide (GaAs).
More Superhard provides precise solutions for cylindrical grinding PDC cutter, repairing PDC drill bits in Oil & Gas industry. We can supply diamond tools include, Vitrified Diamond Wheel for Cylindrical Grinding PDC Cutter / PDC Drill Bits Resin Diamond Wheel for Cylindrical Grinding PDC Cutter / PDC Drill Bits
Diamond grinding wheel resinoid bonded for grinding tungsten carbide and HSS steel. Such as drills, end mills, reamers, micro drills, mini end mills and burrs, etc
Application of cbn grinding wheels: forming and grinding of high speed steel (hss) gear hob and thread cutting tools Width of CBN wheel abrasive layer is generally 3mm -5mm, and the thickness is between 2mm Circular runout and axial runout value of the grinding wheel < 0.01 mm Used Green silicon carbide grinding wheel dressing
► Application: precise grinding mould and die, punch pin, optical grinding and form grinding cutting tool ( such as end mill and reamer) and precise instrument ► Model: 3A1, 14K1, 1B9 ► Bonded: resin bond & metal bond ► Optical Profile Grinder: Amada, Waida, Wasion, etc
According to the bond, diamond grinding wheels can be divided into: resin bond diamond grinding wheels; ceramic bond diamond grinding wheels; metal bond diamond grinding wheels (bronze bond diamond grinding wheels) Resin diamond grinding wheels are used for grinding and processing hard and brittle materials and metal materials such as carbide, glass, ceramics, ferrite, semiconductor materials, stone, etc.
► Application: grinding carbide, ceramic, magnetic materials, stainless steel bar, PCD & PCBN compositives ► Model: 1A1 , 6A1, 9A1 ► Bonded Type: Resin bond, Metal bond ► Centerless Grinder Machine: Koyo, Crystec, Dedtru, Landis , Okuma, Paragon, Royal Master, Unison, WMV
Moresuperhard CBN wheel is suitable for high precision formed wheels. Such as grinding of high precision gear, worm gear hob, gearbox shafts, planetary reducers (sun gear, planetary gears), worm reducers (yin and yang rotors), stator inner teeth and outer rotor grinding.
Resin bond diamond mounted points are excellent tools for grinding small areas with diamond smoothing tools for making a clear polished surface finish. This tool has a unique quality that is recommendable for stone carving, cleaning up work, glass, ceramic, and metal. ► Application: harder alloys, ceramics and cermet. ► Bonded: resin bond
Straight type resin diamond cbn wheels Model: 1A1R, 1A1, 3A1, 1V1, 4A2, 4BT9, 6A2, 11V9, 12A2, 14F, etc Workpiece Materials: grinding tungsten carbide cutting tools, ceramic , magnetic materials, silicon , sapphire, glass , quartz and HVOF carbide coated,PCD, PCBN, etc
We provide a full range of thermal spray coating solutions and services which includes: ► OD cylindrical grinding wheel (1A1 shape) ► Diamond sanding belts ► Diamond internal grinding wheel ► Diamond honing stone Model: 1A1 diamond wheel (diameter up to 1100mm)
Resin diamond grinding wheels for grinding carbide, cemented carbide, ceramics, agate, optical glass, semiconductor materials, wear-resistant cast iron, stone, etc. Type: flat, dish, cup Grinding: surface grinding, centerless grinding, cylindrical grinding, internal grinding Model: 1a1, 1a2, 6a2, 11v9, 14a1, 14f1, etc
Resin diamond grinding wheels are mainly used for grinding hard and brittle materials such as tungsten steel industry, cemented carbide industry, woodworking tool industry and die steel. Rough grinding: 80# 100# 120# Semi-finishing processing: 150# 180# 200# 240# Fine grinding processing: 280# 320# 400# 500# 600# 800# 1000# 2000#
Moresuperhard provides qualified services For DANOBAT’s Precision Grinding Machines. External grinding models：CG, PG, LG, HG, WT, mBTG-DANTIP, Internal grinding models: ID, IRD,ILD, IED.
► Vitrified diamond/CBN grinding wheels ► Resind diamond/CBN grinding wheels ► Conventional grinding wheels ► Diamond dressing wheels
► Model: 1A1R, 1A1, 3A1, 1V1, 4A2, 4BT9, 6A2, 11V9, 12A2, 14F, etc ► Workpiece Materials: grinding tungsten carbide cutting tools, ceramic , magnetic materials, silicon , sapphire, glass , quartz and HVOF carbide coated,PCD, PCBN, etc ► Applicable Industry: carbide inserts (cnc tools), carbide circular saw (woodworking tools), Thermal Spraying Coated, Silicon Wafer Grinding, etc
Micro precision resin diamond wheel has a good polishing effect. The Micro precision resin diamond wheel is sharp and not easy to be blocked during grinding. The specific characteristics are as follows: 1. The grinding efficiency is high, and the grinding wheel consumption is relatively slow; 2. Good self-sharpening, low heat generation during grinding, not easy to block, reducing the phenomenon of work burns during grinding; 3. The Micro precision resin diamond wheel has a certain degree of elasticity, which is beneficial to improve the surface roughness of the workpiece. It is mainly used for fine grinding, semi-finishing grinding, knife grinding, polishing and other processes
►Excellent Grinding Action ►less apt to experience loading, and they dress easily for added convenience ►Convenience and Ease of Use ►Grinding abilities apply to both wet and dry tasks on processing objects such as harden steel, glass, ceramic, carbide alloys, ferrite, refractories, semi conductors, and other electrical carbon products.
► Good concentricity, less runout, small tolerance ► Round hole/Face/Square hole/Arc/Groove/ Spherical/ contour grinding ► Bond: resin bond/ electroplated/ vitrified ► Grinding machine: Moore, Hauser, Mitsuiseiki, Waida and Jingtian, etc. ► Grit：40 #-1000#
Resin Bond diamond wheels are mostly used for precision grinding, surface grinding, centerless grinding, cylindrical grinding, internal grinding of carbide, cermets and ceramics, glass, magnetic materials, quartz glass, etc. Size of resin diamond wheel: 60mmx 12.7mm x 19mm x 10mm
► OD cylindrical grinding wheel (1A1 shape) ► Diamond sanding belts ► Diamond internal grinding wheel ► Diamond honing stone Model: 1A1 diamond wheel (diameter up to 1100mm)
Resin bond diamond wheel for silicon wafer can be used for the Japanese ,German, American, Korean and other grinders . Such as Okamoto , Disco, Strasbaugh and others grinding machine.
Resin bonded diamond grinding wheels are used for finishing grinding, polishing and ultra-finish grinding stage processing nonmetallic hard and brittle materials such as glass, stone, ceramics, gem, magnetic, etc.
► Application: precision grinding micro drill tools Advantages of micro tool grinding wheel: * Good edge stability * High cutting efficiency * Minimal reject-part rates * Good round tool quality
Moresuperhard provides qualified services For DANOBAT Precision Grinding Machines. Centerless grinding models：VG, DVG
► Resind diamond/CBN grinding wheels ► Conventional grinding wheels ► Diamond dressing wheels
