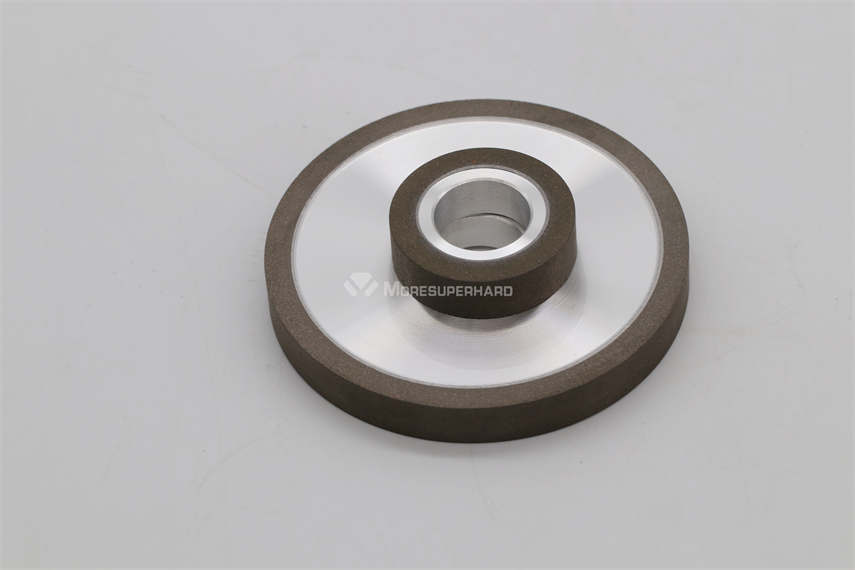

Resin diamond & cbn wheels used for machining tungsten carbide cutting tools, ceramic ,magnetic materials, silicon ,glass ,quartz and high speed steel,etc
Resin diamond wheels for grinding tungsten carbide and HSS steel. Such as drills, end mills, reamers, micro drills, mini end mills and burrs, etc Type: 1A1,1V1,1A1R,6A2,6A9,3A1,9A1,11V9,12A2,14A1 etc. Moresuperhard has more than 15 years’ experience in producing diamond and cbn grinding wheels.
High Precision Resin diamond grinding wheels are widely used in semi-precision grinding, fine grinding and polishing of cemented carbide tools, PDC cutter, PDC drill bits, ceramics, magnetic materials, crystals and other materials. Size of resin bonded diamond wheel: D60* 12.7* 19* 10MM
The bakc grinding wheels include vitrified bond and resin bond diamond wheels. Application of back grinding wheels: back thinning, grinding and fine grinding of apphire epitaxial wafer, silicon wafer, gallium arsenide and GaN wafer
►Excellent Grinding Action ►less apt to experience loading, and they dress easily for added convenience ►Convenience and Ease of Use ►Grinding abilities apply to both wet and dry tasks on processing objects such as harden steel, glass, ceramic, carbide alloys, ferrite, refractories, semi conductors, and other electrical carbon products.
Micro precision resin diamond wheel has a good polishing effect. The Micro precision resin diamond wheel is sharp and not easy to be blocked during grinding. The specific characteristics are as follows: 1. The grinding efficiency is high, and the grinding wheel consumption is relatively slow; 2. Good self-sharpening, low heat generation during grinding, not easy to block, reducing the phenomenon of work burns during grinding; 3. The Micro precision resin diamond wheel has a certain degree of elasticity, which is beneficial to improve the surface roughness of the workpiece. It is mainly used for fine grinding, semi-finishing grinding, knife grinding, polishing and other processes
Optical glass, electronic materials, and electronics industry. Glass chips on the side of EP wheels for glass polishing are removed and the glass is effectively removed to increase the strength of the glass. Especially our products are excellent in grinding efficiency, making various shapes . The optical profile wheels which are widely used in the processing and grinding of optical projection curve grinder or other precision grinders.
Straight type resin diamond cbn wheels Model: 1A1R, 1A1, 3A1, 1V1, 4A2, 4BT9, 6A2, 11V9, 12A2, 14F, etc Workpiece Materials: grinding tungsten carbide cutting tools, ceramic , magnetic materials, silicon , sapphire, glass , quartz and HVOF carbide coated,PCD, PCBN, etc
► Good concentricity, less runout, small tolerance ► Round hole/Face/Square hole/Arc/Groove/ Spherical/ contour grinding ► Bond: resin bond/ electroplated/ vitrified ► Grinding machine: Moore, Hauser, Mitsuiseiki, Waida and Jingtian, etc. ► Grit：40 #-1000#
Resin bond grinding wheels are the most commonly used super abrasive product currently. our resin diamond wheel is suitable for surface grinding, OD grinding, centerless grinding, tool grinding, fine grinding ,double disc grinding and slot grinding of most precision workpieces.
Silicon wafer back grinding, resin bond diamond wheels are used for back thinning, grinding and fine grinding of apphire epitaxial wafer, silicon wafer, gallium arsenide and GaN wafer
According to the bond, diamond grinding wheels can be divided into: resin bond diamond grinding wheels; ceramic bond diamond grinding wheels; metal bond diamond grinding wheels (bronze bond diamond grinding wheels) Resin diamond grinding wheels are used for grinding and processing hard and brittle materials and metal materials such as carbide, glass, ceramics, ferrite, semiconductor materials, stone, etc.
Resin diamond grinding wheels are mainly used for grinding hard and brittle materials such as tungsten steel industry, cemented carbide industry, woodworking tool industry and die steel. Rough grinding: 80# 100# 120# Semi-finishing processing: 150# 180# 200# 240# Fine grinding processing: 280# 320# 400# 500# 600# 800# 1000# 2000#
Hob cutter can be used for machining gears, sprockets, turbines and splines. The advantages of gear hob cutter grinding cbn wheel Grinding wheel uses end grinding, the outer circle is very thin, can be ground to the bottom of the edge. good wear resistance and low loss dry grinding and wet grinding.
Resin bonded diamond grinding wheel • For grinding tungsten carbide and steel materials • High material removal volumes at low grinding forces • For wet and dry grinding • High flexibility by mixing in suitable additives • For fine grinding operations
► Application: precision grinding micro drill tools Advantages of micro tool grinding wheel: * Good edge stability * High cutting efficiency * Minimal reject-part rates * Good round tool quality
Resin diamond grinding wheels for grinding carbide, cemented carbide, ceramics, agate, optical glass, semiconductor materials, wear-resistant cast iron, stone, etc. Type: flat, dish, cup Grinding: surface grinding, centerless grinding, cylindrical grinding, internal grinding Model: 1a1, 1a2, 6a2, 11v9, 14a1, 14f1, etc
► Application: precise grinding mould and die, punch pin, optical grinding and form grinding cutting tool ( such as end mill and reamer) and precise instrument ► Model: 1A1, 3A1, 14A1, 1V1, 11V9, 12V9, 4B1, 3A1, 14K1, 1B9 ► Bonded: resin bond & metal bond ► Optical Profile Grinder: Amada, Waida, Wasion, etc
Resin CBN grinding wheel for grinding hardened steel is a good choice. Because of the high hardness of hardened steel, it is very hard to be grinded. Also, the hardened steel contains the iron element, we can not use diamond grinding wheel to process it.
Diamond CBN grinding wheel heads are used because of their durability and their ability to cleanly cut the harder alloys, ceramics and cermet.
Resin bonded diamond grinding wheels applied to coarse grinding and finish grinding for metal materials, such as PCD and PCBN workpiece and tools, high speed steel, high vanadium steel, stainless steel, steel and hard alloy. For finishing grinding, polishing and ultra-finish grinding stage processing nonmetallic hard and brittle materials such as glass, stone, ceramics, gem, magnetic, etc.
Types of resin bond diamond and cbn wheels: 1A1,1V1,1A1R,6A2,6A9,3A1,9A1,11V9,12A2,14A1 etc. Diameters: 25mm-500mm Thickness: 5mm-40mm Grit: 80# -5000# (D251-D1) Hole: 10mm-127mm Concentration: 25%, 50%, 75%, 100%, 125%, 150%
Resin Bond diamond wheels are mostly used for precision grinding, surface grinding, centerless grinding, cylindrical grinding, internal grinding of carbide, cermets and ceramics, glass, magnetic materials, quartz glass, etc. Size of resin diamond wheel: 60mmx 12.7mm x 19mm x 10mm
