Vitrifie diamond internal wheel, inner grinding carbide

► Grinding Indexable inserts (tungsten carbide inserts, ceramic inserts, CBN inserts)
► Model: 6A2T, 6A2M, 11A2B, 12A2T
► Grinding Machine: WENDT, WAIDA, AGATHON, EWAG, COBORN, etc.

How to choose grain size of ceramic diamond bruting wheel to polish natural diamond?
MD-20: fine polishing small diamond (10 points- 1carat)
MD-40, MD-60: rough polishing big diamond.(1ct ,1.2ct and 1.3 carat,etc)
MD-80: rougher polishing

Vitrified bond diamond grinding wheels are mainly used in silicon wafer, semiconductor silicon, Led, polycrystalline diamond compact (PDC), diamond polycrystalline (PCD), diamond cutting tools, cubic boron nitride (CBN), tungsten carbide, ceramics, crystals, magnetic materials, optical glass and other high hard brittle materials machining.
Type: 1a1, 6a2, 14a1, 3a1, 11v9, etc

Vitrified diamond peripheral wheels for ultra-hard materials, such as carbides, PCD, CBN, ceramics or cermets

Vitrified grinding wheel abrasive diamond can be utilized in numerous grinding applications. These include but are not limited to:
Medical Device and Instrument Manufacturing
PCD & PCBN Tool Grinding
Ball Screw Grinding
Automotive Manufacturing
Aerospace Parts
Wind Turbine Manufacturing
Cutting tools manufacturing

Vitrified cbn internal grinding wheels are mainly used for internal grinding of compressor parts, internal grinding of bearings, constant velocity universal joint ball cage and internal and external ball path grinding, etc.
Bonded: vitrified CBN
Model: internal grinding

Vitrified CBN grinding wheels are mainly used for camshaft and crankshaft of automotive, motorcycle, diesel, gasoline etc.
Material includes cast iron, carbon steel, alloy steel, bearing steel etc.
Suit for cnc camshaft grinder like Japan Toyota, German Junker and Schaudt etc.

3A1 vitrified bond/ ceramic bond diamond wheels for cylindrical grinding pcd bearing.
MoreSuperhard offers a comprehensive stock vitrified bond diamond and cbn wheels selection to service most of your needs – with the fastest delivery and lowest prices

Body Material: Aluminum or Steel
Grain size: all grain size can be customized
Usage: grinding, sharpening, polishing
Bond: resin,vitrified,electroplated,metal bond are also available
Work piece: metal,HSS,tungsten carbide,glass,stone…etc
Size: all sizes,like 100mm,150mm,175mm,200mm,250mm….etc

Vitrified cbn wheel for camshaft
Contour grinding
Cylindrical grinding
Cam-lobe grinding

Vitrified diamond wheels for Roll grinding and grinding of thermal spray coatings ( including tungsten carbide , chrome carbide and chrome oxide ), ceramics, carbides, chilled iron composites and other hard-to-grind materials.

Camshaft grinding wheel is suitable for high-efficient heavy grinding of camshaft of automobile parts.
Grinding wheels for camshaft speed is 80m/s-160m/s
Designed to used on CNC Cam Grinders like Toyoda, Schaudt, Landis, Junker etc.

Diamond peripheral wheels for grinding indexable inserts (tungsten carbide inserts, ceramic inserts, CBN inserts, cermet inserts, etc)

Vitrified diamond wheels for sharpening circular saw blade of cemented carbide, high-speed steel, cermet, PCD, CBN, cvd, mcd, and band saw
Size of vitrified diamond wheel: D125x T5x H20x W5
Type of vitrified diamond wheel: 14a1 diamond wheel

Applications of diamond bruting wheel: girdling, polishing and bruting natural diamond.
Bonded: ceramic / vitrified bond
Model: 1a1 , 14a1 diamond wheel
CNC Bruting Machines: EOS Bruting Machine, Adri Machines And Discron Machine, Etc.

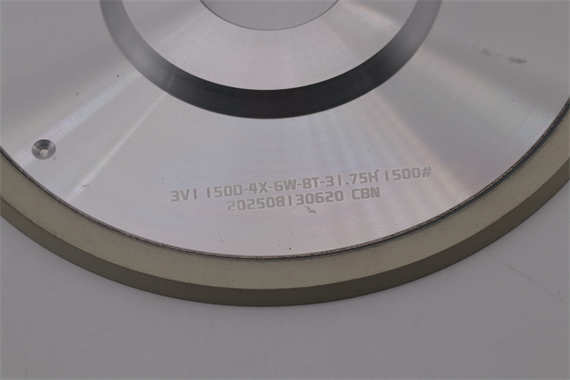

Vitrified bond diamond grinding wheels can be used for grinding PCD & PCBN cutting tools, CVD tools, MCD tools, milling cutter, reamer, drill and regrinding, etc.

Application: carbide, tungsten steel, vitrified optical glass, sapphire glass, high-speed steel, bearing steel, tool steel, stainless steel, and cast iron, etc
► Bond: vitrified bond & resin bond
► Diameter: 300- 1500mm

► Provide matching dressing grinding wheel
►Diamond & CBN shapes: cylindrical, hexagonal, square, segmented
► Grinding machines: Wendt WBM, Viotoo, AMT, Stahli, Peter Wolters, Diskus, Agathon T&B, Fujisanki, Supfina, Melchiorre, Koyo, Lam Plan, Speedfam, Kemet, Gardner and other brands.

Vitrified diamond wheels widely used in wafers (semiconductor wafers and solar wafers), diamond composite wafers, diamond polycrystalline, diamond tools, cubic nitriding in developed countries in Europe and America. Boron, tungsten steel (hard alloy), new engineering structural ceramics, gemstones, crystals, rare earth materials (magnetic materials) and other high-hardness and brittle materials are machined, and good economic benefits have been achieved.

Camshaft grinding wheels with cbn are used for grinding the cam lobes and journals of automobile camshaft.
Vitrified bond CBN grinding wheels can fit for TOYODA, SCHAUDT, JUNKER, LANDIS and other brand CNC grinding machines.

More SuperHard provides a full range of thermal spray coating solution and service which includes OD grinding, inside grinding, cylindrical grinding, surface grinding and polishing, etc. We have been present on the Thermal Spraying Coating industry for over 10 years . Our diamond cylindrical wheels for HVOF carbide coating has enjoyed wide popularity in Canada, Turkey, Dubai, etc.

► Application: inner grinding of bearing, compressor, CVJ ball-cage, hydraulic tappets, universal joint, stator and rotor .
► Body type: ID Wheel with Shank, ID Wheel without Shank
► Model type: 1A8, 1A1W, 1A1, DWA
► We can offer: abrasive internal grinding wheels (PA, SG), CBN internal grinding wheels, Diamond internal grinding wheel

► Grinding, regrind pcd, pcbn, cvd tools
► Bonded: vitrified bond, resin bond, metal bond
► Width: 1mm – 20mm

► Up to #10000 for super finish
► Cutting-edge chipping <5 μm ► Provide dressing wheel to dress PCD grinding wheel

The First Vitrified Diamond cylindrical Grinding Wheel used in thermal spraying coating in MoreSuperHard

Manufacturing processes for silicon semiconductor
Silicon Ingot ⇒ Cropping(electroplated bandsaw) ⇒ Cylindrical / Flat Grinding Silicon Rod ⇒ Ingot Silicon (diamond wire) ⇒ Lapping (double side wheel/polishing pad) ⇒ Edge Grinding ⇒ Surface grinding ⇒ polishing⇒ wafer⇒ patterning ⇒ back grinding (vitrified / resin wheels) ⇒ dicing (dicing blades)⇒ chips ⇒ molding ⇒ packaging

►Excellent Grinding Action
►less apt to experience loading, and they dress easily for added convenience
►Convenience and Ease of Use
►Grinding abilities apply to both wet and dry tasks on processing objects such as harden steel, glass, ceramic, carbide alloys, ferrite, refractories, semi conductors, and other electrical carbon products.

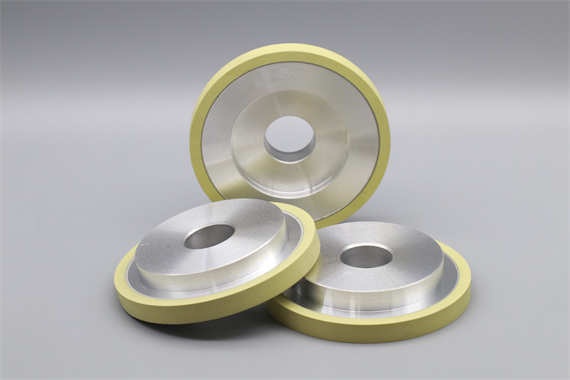

Ceramic bond diamond grinding wheel has the characteristics of high temperature resistance, high efficiency, good rigidity, and good shape retention.
Used for processing PCD bearing, it can sharpen the surface quality to the maximum. Its grinding efficiency is twice that of resin bond, and its wear resistance is high, the grinding ratio is small, and the service life of the grinding wheel is as long as 4 times.

Vitrified bond diamond wheel are efficiently used for grinding difficult-to-machine materials such as PCD, PCBN, ceramics, etc.
Vitrified bond diamond wheel are generally superior in grinding ability to metal bond wheels. Because the vitrified bond has no elasticity, it is better suited for tight tolerance applications than resin bond wheels

Vitrifie diamond internal wheels for inner grinding tungsten carbide mold, die and jig for mechanical and electronics industry
Model: 1a8, 1a1w
Bonded: vitrified bond, resin bond, electroplated bond

Diamond and CBN (cubic boron nitride) internal grinding wheel produced by moresuperhard’s factory can achieve a small diameter of 1.5 mm, and the wear resistance is very good, and there is no need to frequently trim the outer circle. Batch processing of small holes of parts can ensure the consistency of roundness, perpendicularity and diameter tolerance accuracy, high temperature resistance during the grinding operation, and no burns on the workpiece and the grinding wheel.
Grease grinding fluid must be added during the grinding process To cool down and remove chips (tap water can not be added directly, tap water will carbonize the high-temperature grinding CBN raw materials), to avoid the large amount of metal scrap generated during the grinding process from squeezing the hole wall of the workpiece and blocking the pores on the surface of the cubic boron nitride grinding head .
