► Customized cutting, grinding, sharpening, brazing, regrind and retipped solution and service ► Bonded: vitrified bond, resin bond, metal bond ► Model: diamond cup wheel (6A2, 11A2, 1A2)
► Width: 3mm – 20mm ► Grain Size up to super finish #3000 ► Cutting-edge chipping <5 μm
►Ideal for difficult to grind steel ►Faster stock removal cooler cutting ►Superior form holding
Features: High precision and efficiency grinding performance. Long service life, meaning that the wheels will not wear out quickly. Good thermal stability, ensuring that the wheels maintain their shape and size. Chemically stable and corrosion-resistant materials are used, ensuring that the wheels do not rust or corrode. The wheels are designed to be lightweight and easy to use.
►Material: Diamond ►Surface Treatment: As the picture shows ►Type: Bullet/Inverted Trapezoid/Ball/Round Head Cylinder/Flat Head Cylinder ►Tip Diameter：12mm 14mm 16mm 18mm 20mm 25mm or be customized. ►Shank Diameter：6mm, 6.35mm or be customized.

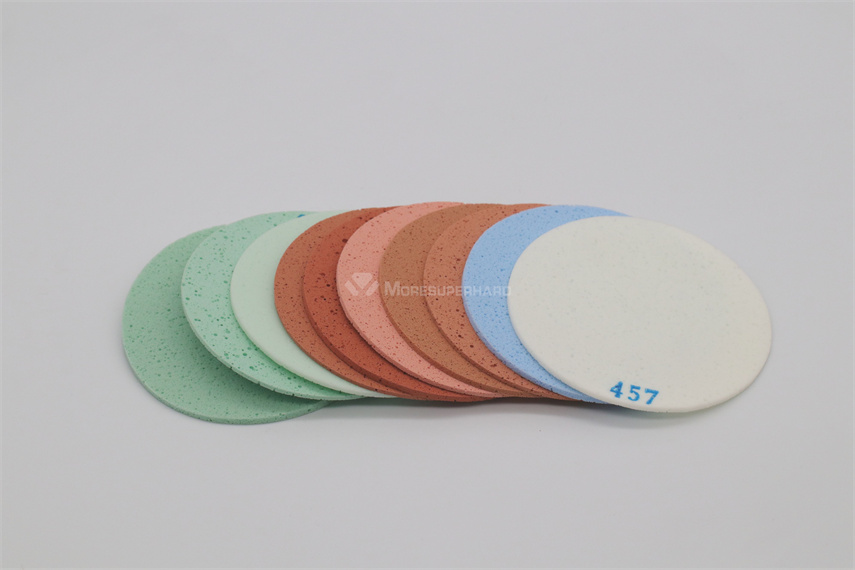

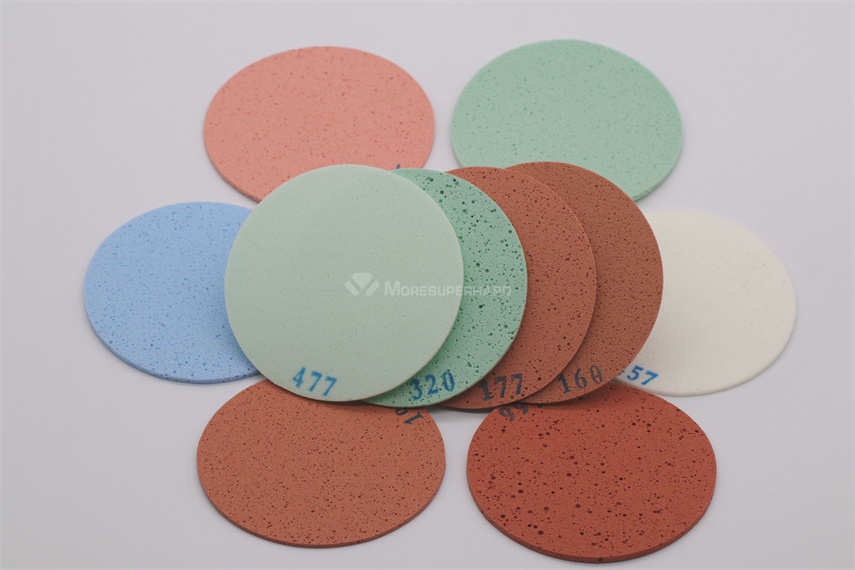

► Polishing and finishing of glass, LCD/LED substrates, precision optics, hard disk, metal and semiconductor wafer surfaces ► Model: MSH-66, MSH-77, MSH-13, MSH-LASER, MSH-46 ► Thickness: 0.02″ (0.508 mm) – 0.20″ (5.08 mm)
► Application: grinding various precision ceramic ► Bonded: resin bond & vitrified bond ► Correct choice of grain size and bonded * Usually rough grinding uses D126, D91 (Resin bond &Vitrified bond) * Semi-rough grinding uses D76, D64, D54, D46 (Resin bond & Vitrified bond) * Semi-finish grinding uses D25, D20 (Resin bond &Vitrified bond) * Finishing grinding uses D15 (Resin bond) * Super finishing uses D7, D1 (Resin bond)
► Grinding Indexable inserts (tungsten carbide inserts, ceramic inserts, CBN inserts) ► Model: 6A2T, 6A2M, 11A2B, 12A2T ► Grinding Machine: WENDT, WAIDA, AGATHON, EWAG, COBORN, etc.
Resin bond diamond & CBN wheels are mainly used for small-diameter tungsten, stainless steel or hss drills, micro drills, and end mills used in electronics, medical technology, and the automotive industry. Advantages of micro tool grinding wheel: * Good edge stability * High cutting efficiency * Minimal reject-part rates * Good round tool quality
► Applications: polishing and faceting gemstones (jade, crystal, agate), spinel, sapphire, jewelry, glass artwork, and precision machining industry ► Bonded: resin bond, electroplated bond ► The grain size up to #15000 Features Backed by a strong Aluminum base, these laps have a sturdy construction and last long. Perfect for polishing soft gemstones. Perfectly flat and parallel to the surface to ensure great balance and accuracy.
Metal bonded diamond wheels are best suited for edge rough grinding and have coarser diamonds for higher material removal. The diamonds are embedded in a sintered metal matrix. These wheels can either have a segmented pattern for edge rough grinding or a continuous pattern for fine grinding. Features: Wear resistant with a longer service life The higher material removal rate High grinding efficiency
► Application: precise grinding mould and die, punch pin, optical grinding and form grinding cutting tool ( such as end mill and reamer) and precise instrument ► Model: 1A1, 3A1, 14A1, 1V1, 11V9, 12V9, 4B1, 3A1, 14K1, 1B9 ► Bonded: resin bond & metal bond ► Optical Profile Grinder: Amada, Waida, Wasion, etc
The diamond resin grinding wheel has a good polishing effect. The grinding wheel is sharp and not easy to be blocked during grinding. The specific characteristics are as follows: 1. The grinding efficiency is high, and the grinding wheel consumption is relatively slow; 2. Good self-sharpening, low heat generation during grinding, not easy to block, reducing the phenomenon of work burns during grinding; 3. The grinding wheel has a certain elasticity, which is conducive to improving the roughness of the workpiece surface. It is mainly used for fine grinding, semi-fine grinding, knife grinding, polishing and other processes; 4. The diamond resin grinding wheel is cured at low temperature, the production cycle is short, and the equipment and supply process is relatively simple; due to the fluidity of the resin, it is easy to form a grinding wheel with complex surfaces
Resin bond diamond & CBN wheels are mainly used for small-diameter tungsten, stainless steel or HSS drills, micro drills, and end mills used in electronics, medical technology, and the automotive industry. Applications: face grinding, top grinding, flank grinding, hollow tooth grinding and re-sharpening for tungsten carbide tipped saw blades and one-piece HSS saws Models: 4A2, 4BT9, 11A2, 15A2, 12V2, 14F1, etc
PDC Blanks for Korean Customer
Silicon wafer back grinding, resin/vitrified bond diamond wheels are used for back thinning, grinding and fine grinding of apphire epitaxial wafer, silicon wafer, gallium arsenide and GaN wafer
For Woodworking Industry, Resin bond Diamond and CBN Wheels are the best choice. The applications include sharpening and production grinding. With more than 10 years of experiences, Moresuperhard has developed the premium bonds for this application. We provide both standard specs and Custom made wheels.
1.Resin Bond Diamond wheel is to grind Tungsten Carbide tipped tools and saws. 2.Resin Bond CBN wheel is to grind the circular saws and band saws made from HSS, tool steel, and Stellite type material. 3. Resin CBN wheel is to grind the tool made from the combination of Carbide and hardened Tool Steel.
Diamond grinding wheels for grindingTungsten Carbide, Ceramics, Composites, Stainless Steel, HS Steel, Titanium Nitride, Zirconia / Aluminum Oxide, Ferrites, Powdered Metals, Sintered Silicon Carbide, Titanium Graphite Composite
Moresuperhard provide cutting tools (carbide, cermet, pcd/pcbn, cvd, mcd) grinding and regrinding service and solution. The grinding wheels include, vitrified diamond wheel, resin diamond wheel, metal bond grinding wheel
Vitrified bond diamond grinding wheels have been widely used in the PCD/PCBN tools edge processing, diamond edge processing, carbide cylindrical processing and camshaft grinding and other processing fields. Vitrified bond grinding wheels will produce a lot of heat in the process of high load during dry grinding. Using the cooling fluid with a vitrified grinding wheel the effect is more outstanding. Many breakthroughs have been made in PCD composite material, CBN composite material and tungsten carbide processing, thus the application range of grinding wheels is wider.
Diamond Stones: Harder than all other abrasives Use with lubricant (water, glass cleaner, Krud Kutter) Materials: micronized monocrystalline diamonds Grit range: 120-8000 Costs: $20 – $100 Common Size: 2″x6″, 3″x8″, 4″x10″
Cylindrical Grinder Accessories – Precision Spindle – V and flat guide rail – C3 Ball Screw – Precision hand shovel – Roller grinding wheel corrector
Extreme Precision and Excellent Surface Finish
► Grinding, regrind pcd, pcbn, cvd tools ► Bonded: vitrified bond, resin bond, metal bond ► Width: 1mm – 20mm
► Up to #10000 for super finish ► Cutting-edge chipping <5 μm ► Provide dressing wheel to dress PCD grinding wheel
