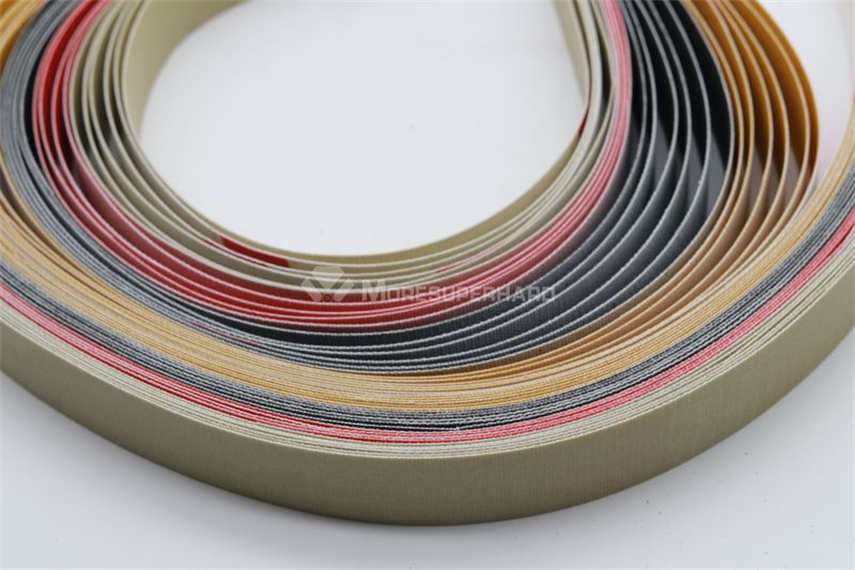

High-quality Diamond Film Belt

Main features of CNC profile grinding wheels
Perfect processing quality
High efficient grinding with fast feeding
Good wear resistance and shape keeping
Applications of cnc grinding wheel
Mainly used for grinding digital controlled cutting tools such as tungsten carbide, high speed steel, stainless drill, mill and rimer.
Type: 1a1, 14a1, 11v9, 1v1, 12v9, 14f1

► Bonded: resin bonded
► Application: precision grinding micro drill tools
Advantages of micro tool grinding wheel:
* Good edge stability
* High cutting efficiency
* Minimal reject-part rates
* Good round tool quality

Moresuperhard has different types of Vitrified Diamond Grinding Wheels.

► Application: grinding various precision ceramic
► Bonded: resin bond & vitrified bond
► Correct choice of grain size and bonded
* Usually rough grinding uses D126, D91 (Resin bond &Vitrified bond)
* Semi-rough grinding uses D76, D64, D54, D46 (Resin bond & Vitrified bond)
* Semi-finish grinding uses D25, D20 (Resin bond &Vitrified bond)
* Finishing grinding uses D15 (Resin bond)
* Super finishing uses D7, D1 (Resin bond)

Brazing diamond tool is a tool product which solders a layer of diamond firmly on the metal matrix through the melting process of metal solder. This kind of product has the characteristics of higher efficiency, the long service life of a single diamond particle and high grinding accuracy. The main products cover all coarse and medium-sized electroplated diamond tools and some hot-pressed diamond tools.
In order to avoid the problems of low holding power, small chip space, low exposure height and easy falling off caused by traditional manufacturing methods, and to make greater use of the advantages of single-layer diamond tools, brazing technology has been applied to the field of diamond tools manufacturing since 2000 and has developed rapidly. Brazing technology, as a new manufacturing method of diamond tools, has attracted wide attention all over the world.

Porous Ceramic Chuck Tables are widely used as important components of equipment in silicon wafers, semiconductor compound wafers, piezoelectric ceramics, glass, LED, semiconductor package component substrate, optical component thinning, and cutting.

► Bond: Metal nickel plating electroplated bond & Resin bond (resin bond also consists of flexible and hard type)

► Length: 150mm – 5000mm

► Width: 5mm – 350mm

► Grit: #60,#100,#120,#200,#400,#800,#1500,#2000,#3000,#5000

Features:
High precision and efficiency grinding performance.
Long service life, meaning that the wheels will not wear out quickly.
Good thermal stability, ensuring that the wheels maintain their shape and size.
Chemically stable and corrosion-resistant materials are used, ensuring that the wheels do not rust or corrode.
The wheels are designed to be lightweight and easy to use.

— Applications: face grinding, top grinding, flank grinding, hollow tooth grinding and re-sharpening for tungsten carbide tipped saw blades and one-piece HSS saws
— Models: 4A2, 4BT9, 11A2, 15A2, 12V2, 14F1, etc
— Bonded: Resin bond, vitrified bond
— Grinding Machine: Vollmer, Woodtronic, Akemat, Widma and so on

►Excellent Grinding Action
►less apt to experience loading, and they dress easily for added convenience
►Convenience and Ease of Use
►Grinding abilities apply to both wet and dry tasks on processing objects such as harden steel, glass, ceramic, carbide alloys, ferrite, refractories, semi conductors, and other electrical carbon products.

The diamond resin grinding wheel has a good polishing effect. The grinding wheel is sharp and not easy to be blocked during grinding.
The specific characteristics are as follows:
1. The grinding efficiency is high, and the grinding wheel consumption is relatively slow;
2. Good self-sharpening, low heat generation during grinding, not easy to block, reducing the phenomenon of work burns during grinding;
3. The grinding wheel has a certain elasticity, which is conducive to improving the roughness of the workpiece surface. It is mainly used for fine grinding, semi-fine grinding, knife grinding, polishing and other processes;
4. The diamond resin grinding wheel is cured at low temperature, the production cycle is short, and the equipment and supply process is relatively simple; due to the fluidity of the resin, it is easy to form a grinding wheel with complex surfaces

Cylindrical Grinder Accessories
– Precision Spindle
– V and flat guide rail
– C3 Ball Screw
– Precision hand shovel
– Roller grinding wheel corrector

Conventional cylindrical grinding machine is designed for the grinding of workpieces in single-component or small series production runs. Cylindrical grinder is suitable for use in any industry where precise small components are manufactured.

►High Precision CNC lnternal Grinder Models:
-IG150
-IG150 I (Elongated)

►Broad Applications:
The inner cylinder, the inner cone and the end face of the step shaft：
– Transmission gear hole grinding
– Air conditioning warping
– Bearing
– Ring gauge

► Application: grinding various precision ceramic

► Bonded: resin bond & vitrified bond

► Correct choice of grain size and bonded
* Usually rough grinding uses D126, D91 (Resin bond &Vitrified bond)
* Semi-rough grinding uses D76, D64, D54, D46 (Resin bond & Vitrified bond)
* Semi-finish grinding uses D25, D20 (Resin bond &Vitrified bond)
* Finishing grinding uses D15 (Resin bond)
* Super finishing uses D7, D1 (Resin bond)

1. High production efficiency, long service life and low cost of dressing of individual parts.
2. It can maintain the stability of parts precision and the high qualified rate of products for a long time.
3. For some parts whose complex surface or other imitation dressing is difficult to meet the requirements, the Rotary dresser can obtain satisfactory results.
4. Easy to operate.
5. High utilization of CNC machine , easy to achieve automation and mass production.

► Model: 1A1, 1V1, 14A1, 3A1
► Application: fluting end mill, drill, cutter
► Advantages of flute wheel
* Online truing & dressing capability lower tooling cost
* Better edge quality

Body Material: Aluminum or Steel
Grain size: all grain size can be customized
Usage: grinding, sharpening, polishing
Bond: resin,vitrified,electroplated,metal bond are also available
Work piece: metal,HSS,tungsten carbide,glass,stone…etc
Size: all sizes,like 100mm,150mm,175mm,200mm,250mm….etc

Moresuperhard provides resin diamond grinding wheels for the thermal spraying industry. Cylindrical diamond wheel is used for grinding and finishing of thermal spray coatings ( including tungsten carbide , chrome carbide and chrome oxide ), ceramics, carbides, chilled iron composites and other hard-to-grind materials.

► Customized cutting, grinding, sharpening, brazing, regrind and retipped solution and service
► Bonded: vitrified bond, resin bond, metal bond
► Model: diamond cup wheel (6A2, 11A2, 1A2)

► Width: 3mm – 20mm
► Grain Size up to super finish #3000
► Cutting-edge chipping <5 μm

Moresuperhard provides a line of solution and services for ultra performance tools grinding on CNC machines. Our services include,
► Fluting
► Gashing clear edge and relief angle
► OD grinding of the tungsten carbide, HSS, milling cutter, reamer and drill, etc
Our Diamond and CBN wheels are available in resin bond and hybrid bond. The applicable machines include,Walter, Anca, Ewag, Vollmer, Rollomatic, Schutte, Schneeberger, Makino, TG-5, Stuer, Strausak, Cininnati, Griffo, Huffmann, Jungner

► Good concentricity, less runout, small tolerance
► Round hole/Face/Square hole/Arc/Groove/ Spherical/ contour grinding
► Bond: resin bond/ electroplated/ vitrified
► Grinding machine: Moore, Hauser, Mitsuiseiki, Waida and Jingtian, etc.
► Grit：40 #-1000#

Electroplated （galvanic）CBN profile grinding wheels are used for sharpening high-alloy bandsaw.
CBN grinding wheels are commonly used to process band saws brands, including:
Wood-Mizer, Timberwolf, Simonds, Kasco, Morse, Lenox, Dakin Flathers/Ripper 37 and others

► Application: grinding carbide, ceramic, magnetic materials, stainless steel bar, PCD & PCBN compositives
► Model: 1A1 , 6A1, 9A1
► Bonded Type: Resin bond, Metal bond
► Centerless Grinder Machine: Koyo, Crystec, Dedtru, Landis , Okuma, Paragon, Royal Master, Unison, WMV

Moresuperhard’s vitrified CBN grinding tools with highest grinding layer for extended wheel life on the machine. Due to the special manufacturing process very high grinding layers on wheels are possible to shorten the setup-costs in the grinding process.

Features of vitrified CBN grinding wheels:
► longer wheel life
► shorter grinding cycle times
► automated grinding production capabilities with wheels dressed right on the grinder
Vitrified CBN products are ideal for steel and ferrous alloy grinding applications in automotive, aerospace, medical, production tooling, etc. They are excellent thermal conductors and do not react with ferrous materials during the grinding process like diamond does.

Cylindrical Grinder Models: FX27P-60 CNC, FX32P-100 CNC
– Semi Closed Grinder
– Full Cover Grinder
– With Manipulator Grinder
– With Robot Grinder

CNC cylindrical grinder can not only be available for producing shapes like cylinders, but also shapes including cam, ellipse, or crankshaft

Moresuperhard provides our Korean customers with the PDC cutter blanks, and he uses them to drill into soft and intermediate-hardness stratum.
