Fine grinding pcd, vitrified diamond wheels supplier

vitrified diamond profile grinding wheel for dressing high precision rotary dresser roll.

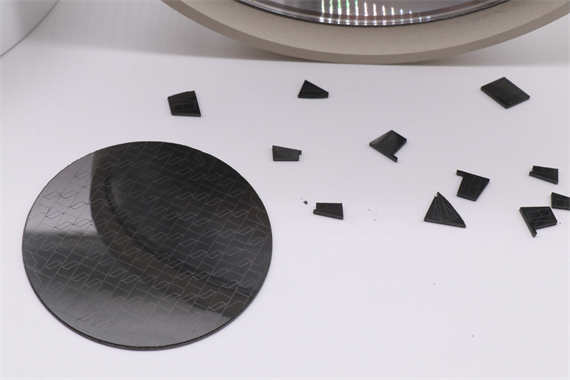

► Grinding, regrind pcd, pcbn, cvd tools
► Bonded: vitrified bond, resin bond, metal bond
► Width: 1mm – 20mm

► Up to #10000 for super finish
► Cutting-edge chipping <5 μm ► Provide dressing wheel to dress PCD grinding wheel

Vitrified bond diamond grinding wheel, processing of superhard materials (PCD, PCBN materials), hard alloy, magnetic materials, engineering vitrified, sapphire, powder metallurgy, copper alloy, aluminum alloy, etc.

► Grinding Indexable inserts (tungsten carbide inserts, ceramic inserts, CBN inserts)
► Model: 6A2T, 6A2M, 11A2B, 12A2T
► Grinding Machine: WENDT, WAIDA, AGATHON, EWAG, COBORN, etc.

Vitrified cbn internal grinding wheels are mainly used for internal grinding of compressor parts, internal grinding of bearings, constant velocity universal joint ball cage and internal and external ball path grinding, etc.
Bonded: vitrified CBN
Model: internal grinding

CBN internal grinding wheel produced by moresuperhard has specifications ranging from outer diameter φ2.5 to φ75, aperture diameter φ1 to φ25, and the height can be made according to customer’s special requirements.
The processing cost of a single part is 30%-50% lower than that of imported grinding wheels.
CBN Internal cylindrical wheels are widely used in the bearing industry, sewing accessories industry, compressor industry, mold industry, pump industry and auto parts industry (hydraulic tappets, constant velocity joints, cylinders, fuel injectors, gears). Good results have been achieved in various internal grinders, coordinate grinders, and inner surface grinders.

►Excellent Grinding Action
►less apt to experience loading, and they dress easily for added convenience
►Convenience and Ease of Use
►Grinding abilities apply to both wet and dry tasks on processing objects such as harden steel, glass, ceramic, carbide alloys, ferrite, refractories, semi conductors, and other electrical carbon products.

Vitrified cbn wheel for camshaft
Contour grinding
Cylindrical grinding
Cam-lobe grinding

More SuperHard Products devotes to offer an efficiency and economic solution in PCD and CBN cutting tools grinding. Vitrified diamond grinding wheels for grinding PCD & PCBN cutting tools, CVD tools, MCD tools, milling cutter, reamer, drill and regrinding, etc

Vitrified bond diamond grinding wheels for high speed and high efficiency grinding PCD, PCBN cylindrical grinding, automotive engine processing, carbide, ceramic, quratz, glass, silicon wafer, thermal spray coating and magnetic materials, etc

High Quality internal grinding wheels processing HRC35-HRC70 degree steel parts (20 chromium steel, 40 chromium steel, tool steel, die steel, bearing steel, alloy steel, structural steel, high-speed steel, ductile iron, heat-resistant steel, titanium alloy, 38 chromium molybdenum aluminum, special Structural steel, etc.)
Customized vitrified bond CBN internal grinding wheels and grinding heads for grinding small holes.

Vitrified bond diamond wheel are efficiently used for grinding difficult-to-machine materials such as PCD, PCBN, ceramics, etc.
Vitrified bond diamond wheel are generally superior in grinding ability to metal bond wheels. Because the vitrified bond has no elasticity, it is better suited for tight tolerance applications than resin bond wheels

vitrified diamond grinding wheels mainly used for sharpening circular saw blades of cemented carbide, high-speed steel, cermet, PCD and pcbn, cvd, mcd, and band saw, etc

Vitrified diamond peripheral wheels for ultra-hard materials, such as carbides, PCD, CBN, ceramics or cermets

Vitrified diamond wheels are used for cylindrical grinding and finishing carbide coated rollers, printing roll, ceramics, wear parts and others hard coated materials. At present, our Vitrified diamond wheel can reach up to 28 inch ( 720 mm) diameter.

► Grinding Indexable inserts (tungsten carbide inserts, ceramic inserts, CBN inserts)
► Model: 6A2T, 6A2M, 11A2B, 12A2T
► Grinding Machine: WENDT, WAIDA, AGATHON, EWAG, COBORN, etc.

Diamond wheels- vitrified/ ceramic bond are manufactured to create higher levels of porosity.
Moresuperhard Vitrified grinding wheels are an ideal choice for ball screw grinding, grinding of cast iron or steel parts such as injection nozzles, compressor blades and vanes, PCD and PCBN tool and insert grinding, plus OD grinding of automotive and aerospace industry parts.

— Applications: face grinding, top grinding, flank grinding, hollow tooth grinding and re-sharpening for tungsten carbide tipped saw blades and one-piece HSS saws
— Models: 4A2, 4BT9, 11A2, 15A2, 12V2, 14F1, etc
— Bonded: Resin bond, vitrified bond
— Grinding Machine: Vollmer, Woodtronic, Akemat, Widma and so on

► Grinding, regrind pcd, pcbn, cvd tools
► Bonded: vitrified bond, resin bond, metal bond
► Width: 1mm – 20mm

► Up to #10000 for super finish
► Cutting-edge chipping <5 μm ► Provide dressing wheel to dress PCD grinding wheel

► Application: inner grinding of bearing, compressor, CVJ ball-cage, hydraulic tappets, universal joint, stator and rotor .

► Body type: ID Wheel with Shank, ID Wheel without Shank
► Model type: 1A8, 1A1W, 1A1, DWA
► We can offer: abrasive internal grinding wheels (PA, SG), CBN internal grinding wheels, Diamond internal grinding wheel

Moresuperhard vitrified bond diamond grinding wheels will give you a precision finish and will meet your exact requirements.
For grinding pcd, cbn, carbide, cermet, ceramic, glass, quartz, stone, sapphire and silicon, as well as grinding on HSS and heat treatment materials.

Peripheral Diamond Grinding wheels are used for indexable inserts grinding.
Peripheral Grinding tungsten carbide inserts, ceramic inserts, cermet, pcd and cbn inserts
Model: 6A2T, 6A2M, 11A2B, 12A2T
Bonded: resin bond and vitrified bond

Vitrified CBN grinding wheels are mainly used for camshaft and crankshaft of automotive, motorcycle, diesel, gasoline etc.
Material includes cast iron, carbon steel, alloy steel, bearing steel etc.
Suit for cnc camshaft grinder like Japan Toyota, German Junker and Schaudt etc.

Vitrified diamond peripheral wheel are able to suit all popular machines, such as WENDT, WAIDA, AGATHON, EWAG, COBORN, etc.

Moresuperhard provides qualified services For DANOBAT Precision Grinding Machines.
Centerless grinding models：VG, DVG

► Resind diamond/CBN grinding wheels
► Conventional grinding wheels
► Diamond dressing wheels

Vitrified bond diamond grinding wheels for grinding
carbide tools
hvof
pcd
pcd pcbn, pcd tools, pcd inserts, pcbn tools, cvd
ceramic
silicon wafer
glass
quartz
sapphire
HSS

Vitrified grinding wheel abrasive diamond can be utilized in numerous grinding applications. These include but are not limited to:
Medical Device and Instrument Manufacturing
PCD & PCBN Tool Grinding
Ball Screw Grinding
Automotive Manufacturing
Aerospace Parts
Wind Turbine Manufacturing
Cutting tools manufacturing

Vitrified diamond wheels for Roll grinding and grinding of thermal spray coatings ( including tungsten carbide , chrome carbide and chrome oxide ), ceramics, carbides, chilled iron composites and other hard-to-grind materials.

Manufacturing processes for silicon semiconductor
Silicon Ingot ⇒ Cropping(electroplated bandsaw) ⇒ Cylindrical / Flat Grinding Silicon Rod ⇒ Ingot Silicon (diamond wire) ⇒ Lapping (double side wheel/polishing pad) ⇒ Edge Grinding ⇒ Surface grinding ⇒ polishing⇒ wafer⇒ patterning ⇒ back grinding (vitrified / resin wheels) ⇒ dicing (dicing blades)⇒ chips ⇒ molding ⇒ packaging

More SuperHard provides a full range of thermal spray coating solution and service which includes OD grinding, inside grinding, cylindrical grinding, surface grinding and polishing, etc. We have been present on the Thermal Spraying Coating industry for over 10 years . Our diamond cylindrical wheels for HVOF carbide coating has enjoyed wide popularity in Canada, Turkey, Dubai, etc.
