Diamond band saw for cutting hard alloy Chinese manufacturer

Cylindrical Grinder Models: FX27P-60 CNC, FX32P-100 CNC
– Semi Closed Grinder
– Full Cover Grinder
– With Manipulator Grinder
– With Robot Grinder

CNC cylindrical grinder can not only be available for producing shapes like cylinders, but also shapes including cam, ellipse, or crankshaft

Best suited for demanding applications where a harder-wearing, longer-lasting blade is required.
specifications can be made according to customers requirements

Resin diamond wheels for grinding tungsten carbide and HSS steel. Such as drills, end mills, reamers, micro drills, mini end mills and burrs, etc
Suitable CNC Grinding Machine: ANCA,WALTER,SCHUTTE,EWAG,SCHNEEBERGER,HUFFMANN and so on.

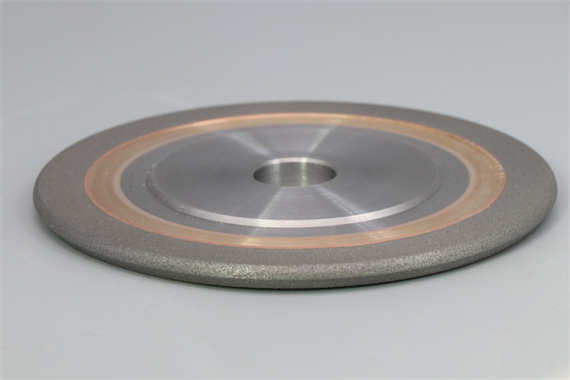

Diamond Fluting Grinding (1A1, 3A1, 14A1, 1V1)

Moresuperhard can offer high-quality diamond internal grinding wheels (PA, SG), CBN internal grinding wheel, and diamond internal grinding wheels for hydraulic tappets/hydraulic valve lifters grinding.

Details about Moresuperhard’s internal grinding wheels:

► Application: inner grinding of bearing, compressor, CVJ ball-cage, hydraulic tappets, universal joint, stator and rotor .
► Body type: ID Wheel with Shank, ID Wheel without Shank
► Model type: 1A8, 1A1W, 1A1, DWA

Resin bond diamond & CBN wheels are mainly used for small-diameter tungsten, stainless steel or hss drills, micro drills, and end mills used in electronics, medical technology, and the automotive industry.
Advantages of micro tool grinding wheel:
* Good edge stability
* High cutting efficiency
* Minimal reject-part rates
* Good round tool quality

1.Resin Bond Diamond wheel is to grind Tungsten Carbide tipped tools and saws.
2.Resin Bond CBN wheel is to grind the circular saws and band saws made from HSS,
tool steel, and Stellite type material.
3. Resin CBN wheel is to grind the tool made from the combination of Carbide and hardened Tool Steel.

We provide a full range of thermal spray coating solutions and services which includes:
► OD cylindrical grinding wheel (1A1 shape)
► Diamond sanding belts
► Diamond internal grinding wheel
► Diamond honing stone
Model: 1A1 diamond wheel (diameter up to 1100mm)

6a9 Resin bonded diamond cbn grinding wheels are used for grinding tungsten carbide, HSS, milling cutter, reamer and drill, etc
CNC grinding machines include,Walter, Anca, Ewag, Vollmer, Rollomatic, Schutte, Schneeberger, Makino, TG-5, Stuer, Strausak, Cininnati, Griffo, Huffmann, Jungner

Electroplated bond grinding wheels have characteristics of high grain density, sharp grinding, high efficiency, good precision, without dressing etc. The product can be made with various shapes and they are suitable for special complicated profile, super-thin, especially small and other form grinding which have strict requirement on geometry shape and dimension.

► Application: grinding carbide, ceramic, magnetic materials, stainless steel bar, PCD & PCBN compositives
► Model: 1A1 , 6A1, 9A1
► Bonded Type: Resin bond, Metal bond
► Centerless Grinder Machine: Koyo, Crystec, Dedtru, Landis , Okuma, Paragon, Royal Master, Unison, WMV

Application: sculpturing, dressing and internal grinding carbide, ceramic,glass, stones, marble,etc

Types of internal grinding wheel:
* vitrified cbn internal grinding wheel
* resin diamond & cbn internal wheel
* electroplated diamond mounted points
* abrasive internal grinding wheel

The Wheel Dresser is designed to provide easy and efficient dressing of diamond /CBN grinding wheels and grinding wheel spindles consisting of several grinding wheels.
►Diamond & CBN wheel dressing machine Models NM-X3 NM-X5 NM-X6
►Applications: -Dressing diamond /CBN grinding wheels -Dressing flat, side, angular, external and profile wheels -Single and multiple wheel combinations

Resin bonded grinding wheel is one of the most representative bond types used for super-abrasive grinding wheels. In general, it shows an excellent compromise between surface roughness, cutability, and long lifetime.
It’s mainly used for carbide, HSS, and ceramic cutting tool grinding applications.
(Genentech GB series)

Feature:
High stability in dry & wet conditions
Application:
General grinding of tungsten-carbide, HSS, Ferrous & Nonferrous metals

Applications: face grinding, top grinding, flank grinding, hollow tooth grinding and re-sharpening for tungsten carbide tipped saw blades and one-piece HSS saws.
Models: 4A2, 4BT9, 11A2, 15A2, 12V2, 14F1, etc
Bonded: Resin bond, vitrified bond
Grinding Machine: Vollmer, Woodtronic, Akemat, Widma and so on

1. High production efficiency, long service life and low cost of dressing of individual parts.
2. It can maintain the stability of parts precision and the high qualified rate of products for a long time.
3.For some parts whose complex surface or other imitation dressing is difficult to meet the requirements, the Rotary dresser can obtain satisfactory results.
4. Easy to operate.
5. High utilization of CNC machine , easy to achieve automation and mass production.

Type: 1A1 & 1A1R
Application: cutting tungsten carbide, alloys, quartz, ceramics, glass, carbon fibre composites, fiber glass, HSS, Hardened Steel and other ferrous material.

Moresuperhard’s customer uses a Japanese Koyo vertical double-end grinding machine with a rotary feedthrough type to grind air conditioning compressor slides.

The bond strength of this type of diamond grinding wheel is weaker than that of other wheels. The self-sharpening for carbide saw blade is better, no blocking.
Diamond and CBN wheels for sharpening circular saw blades (TC, HSS)
Models of grinding wheel: 4A2, 4BT9, 4A9, 3A1, 14A1, 6V5, 6A2, 1A8W, 14F1, etc
CNC machines: Vollmer, Woodtronic, Akemat, Widma and so on

Moresuperhard provides our Korean customers with the PDC cutter blanks, and he uses them to drill into soft and intermediate-hardness stratum.

► Application: grinding various precision ceramic

► Bonded: resin bond & vitrified bond

► Correct choice of grain size and bonded
* Usually rough grinding uses D126, D91 (Resin bond &Vitrified bond)
* Semi-rough grinding uses D76, D64, D54, D46 (Resin bond & Vitrified bond)
* Semi-finish grinding uses D25, D20 (Resin bond &Vitrified bond)
* Finishing grinding uses D15 (Resin bond)
* Super finishing uses D7, D1 (Resin bond)

Application: sculpturing, dressing and internal grinding carbide, ceramic,glass, stones, marble,etc

Types of internal grinding wheel:
* vitrified cbn internal grinding wheel
* resin diamond & cbn internal wheel
* electroplated diamond mounted points
* abrasive internal grinding wheel

► Edge wheel for silicon and sapphire wafer edge grinding. A small diameter wheel is used for notch grinding
► Metal diamond wheel for rough grinding to get an accurate edge profile
► Resin diamond wheel for finish grinding to get good surface roughness

Porous Ceramic Chuck Tables are widely used as important components of equipment in silicon wafers, semiconductor compound wafers, piezoelectric ceramics, glass, LED, semiconductor package component substrate, optical component thinning, and cutting.

►Excellent Grinding Action
►less apt to experience loading, and they dress easily for added convenience
►Convenience and Ease of Use
►Grinding abilities apply to both wet and dry tasks on processing objects such as harden steel, glass, ceramic, carbide alloys, ferrite, refractories, semi conductors, and other electrical carbon products.

► Edge wheel for silicon and sapphire wafer edge grinding. A small diameter wheel is used for notch grinding
► Metal diamond wheel for rough grinding to get an accurate edge profile
► Resin diamond wheel for finish grinding to get good surface roughness

The compact mechanical structure design and the wide application of advanced manufacturing technology further reduce the footprint of the machine tool, which means that the output per unit area increases and improves the competitiveness of the owner.

► Vitrified bond and Resin bond: vitrified bond has a longer lifespan and higher efficiency than resin bond
► Used for the cylindrical grinding of tungsten carbide
► Models: 6A2(Diameter: 100mm-1200mm)

Vitrified bond, resin bond and metal bond diamond wheels are used for grinding ,resharpening cutting tools (pcd, pcbn, cvd, mcd, carbide, ceramic, cermet)

► Finishing or lapping operations are carried out by resin wheels to provide a good surface finish.

►It is used for grinding and cylindrical grinding of cemented carbide measuring tools, tungsten steel, high-speed steel, alloy steel, glass, precious stones, jade, jade, amber, beeswax, magnetic materials, ceramics, molds, etc..
►And can also be used for plunge grinding and forming Grinding is an ideal tool for grinding hard and brittle materials and hard alloys due to the characteristics of diamond abrasives (high hardness, high compressive strength, and good wear resistance).
