Chinese CVD Dressing Roller Manufacturer

We provide a full range of thermal spray coating solutions and services which includes:
► OD cylindrical grinding wheel (1A1 shape)
► Diamond sanding belts
► Diamond internal grinding wheel
► Diamond honing stone
Model: 1A1 diamond wheel (diameter up to 1100mm)

Film belt is for grinding steel, stone, glass, ceramics, mono crystalline silicon, polysilicon, zirconia, alumina, metal-nonmetallic synthetic materials, cemented carbide, aluminum-magnesium alloy, aluminum beryllium alloy, titanium alloy and etc. hard brittle materials.

► Application: precision grinding micro drill tools
Advantages of micro tool grinding wheel:
* Good edge stability
* High cutting efficiency
* Minimal reject-part rates
* Good round tool quality

►High Efficiency
►Long Lifespan
►Wide Range of Applications
►Consistent Performance:
►Low Maintenance

►Model: Tool Grinding Motorized Spindle, Double Head Grinding Spindle, Automatic Grinding Wheel Replacement Grinding Spindle, High-frequency Peel Grinding Spindle, Grinding Wheels Dressing Spindle, High-speed Internal Grinding Electric Spindle
►Features: Low vibration and high efficiency, easily used and installed, precision angular ball bearing to ensure the rotation accuracy and useful life
►Pre-fill grease to provide lubrication of the spindle
►Applications: surface grinding machine, cylindrical grinding machine, internal grinding machine

Metal bonded diamond wheels are best suited for edge rough grinding and have coarser diamonds for higher material removal. The diamonds are embedded in a sintered metal matrix. These wheels can either have a segmented pattern for edge rough grinding or a continuous pattern for fine grinding.
Features:
Wear resistant with a longer service life
The higher material removal rate
High grinding efficiency

We provide a full range of thermal spray coating solutions and services which includes:
► OD cylindrical grinding wheel (1A1 shape)
► Diamond sanding belts
► Diamond internal grinding wheel
► Diamond honing stone
Model: 1A1 diamond wheel (diameter up to 1100mm)

Moresuperhard’s vitrified CBN grinding tools with the highest grinding layer for extended wheel life on the machine. Due to the special manufacturing process, very high grinding layers on wheels are possible to shorten the setup costs in the grinding process.

Features of vitrified CBN grinding wheels:
► longer wheel life
► shorter grinding cycle times
► automated grinding production capabilities with wheels dressed right on the grinder
Vitrified CBN products are ideal for steel and ferrous alloy grinding applications in automotive, aerospace, medical, production tooling, etc. They are excellent thermal conductors and do not react with ferrous materials during the grinding process like diamond does.

Applications of vitrified diamond grinding wheel
♦ For tungsten carbide workpieces
♦ Steel based tungsten carbide coating workpiece
♦ Non-metallic materials semi-finishing grinding and finishing grinding, etc.

Resin diamond and cbn wheels are used for grinding, sharpening drill (2 tips, 3 tips), milling cutter, tap (2 tips, 3 tips, 4tip), reamer (4tips, 6tips, 8tips), carving cutter and gun drill, etc
The materials of workpiece: tungsten carbide, high speed steel (Hss)
The bonded: resin bond , electroplated bond

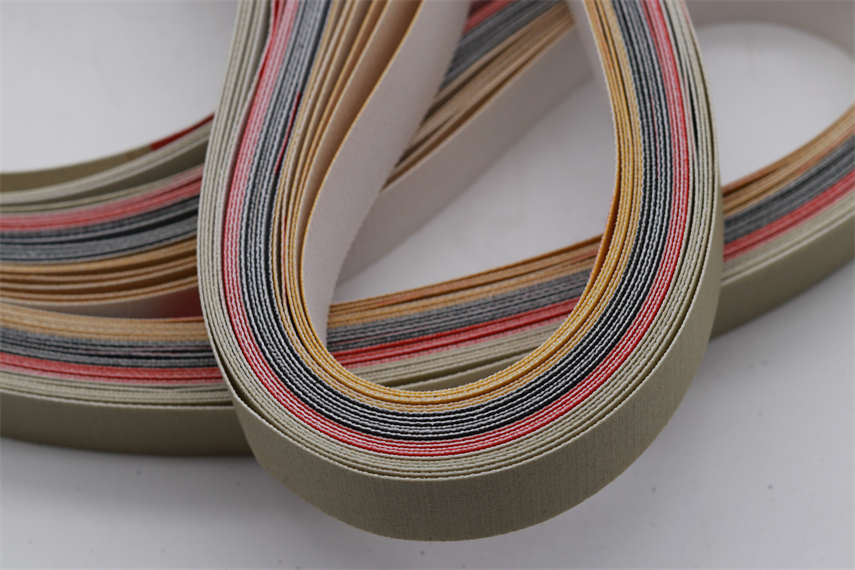

Our film belt is ：
1. with high grinding consistency
2. with high grinding capacity to achieve the precise polishing effect
3. with high flexibility to achieve the ideal surface polishing effect
4. Suitable for dry polishing.

► Bond: Metal nickel plating electroplated bond & Resin bond (resin bond also consists of flexible and hard type)
► Length: 150mm – 5000m
► Width: 5mm – 350mm
► Grit: #60,#100,#120,#200,#400,#800,#1500,#2000,#3000,#5000

► Application: inner grinding of bearing, compressor, CVJ ball-cage, hydraulic tappets, universal joint, stator and rotor .
► Body type: ID Wheel with Shank, ID Wheel without Shank
► Model type: 1A8, 1A1W, 1A1, DWA
► We can offer: abrasive internal grinding wheel (PA, SG), CBN internal grinding wheel, Diamond internal grinding wh

Solid Steel Concave Diamond Grinding Wheel: 4″ in Diameter x 1/2″ Wide, 1″ Hole. Order optional bushings if you have a 1/2″, 5/8″ or 3/4″ arbor (for this wheel order one 1/2″ wide bushings to make the 1/2″ span across the hole).
High-quality nickel-plated diamond on steel.
Grit sizes available: 80, 120, 220, 400, & 600 grit

► Edge wheel for silicon and sapphire wafer edge grinding. A small diameter wheel is used for notch grinding
► Metal diamond wheel for rough grinding to get an accurate edge profile
► Resin diamond wheel for finish grinding to get good surface roughness

Applications of diamond glass saw blade: cutting different types of glass (such as glass mosaic, sheet glass, crystallized glass, glass tile, coated glass, etc)
Size of glass cutting blades: 4″- 16″
►Excellent Grinding Action
►less apt to experience loading, and they dress easily for added convenience
►Convenience and Ease of Use

Vacuum brazed diamond grinding wheels are used for grinding cast iron, alloy steels, grey iron, hard composite materials and metal profiles in the foundry industry.

Vitrified diamond grinding wheels for grinding PCD & PCBN cutting tools, CVD tools, MCD tools, milling cutter, reamer, drill and regrinding, etc
Grain size selection of vitrified diamond grinding wheel
► W40(500# D35) W28(D20) Rough Grinding.
► W20 (800# -1000#, D20) Universal Grinding.
► W10 (1500# D15A) W7 (2000# D15B) Finish Grinding.
► W5 (3000# D7) W3.5 (4000# D3) Super Finish Grinding.

► Application: Grinding engine valves (inlet valves and exhaust valves) in cars, motorcycles, trucks, and other engine valves
► Speed of CBN Wheel: 80-140 m/s
► No need to dress

Resin bond diamond & CBN wheels are mainly used for small-diameter tungsten, stainless steel or HSS drills, micro drills, and end mills used in electronics, medical technology, and the automotive industry.

Main Application
Resin bond grinding wheels have strong competitive advantages in the processing fields of carbide tools, ceramics, glass, PCBN tools, PDC cutter, Steel, cast iron, electronic information components precision cutting etc.

With hydrostatic liquid suspension electric spindle, high rigidity, high speed, low vibration, high grinding force.
►Servo Surface CNC cylindrical grinder Models
GP32
J2
►Applications:
– automotive and aerospace industries,
– tool manufacturing
– die makingn

The bond strength of this type of diamond grinding wheel is weaker than that of other wheels. The self-sharpening for carbide saw blade is better, with no blocking.
Diamond and CBN wheels for sharpening circular saw blades (TC, HSS)
Models of grinding wheel: 4A2, 4BT9, 4A9, 3A1, 14A1, 6V5, 6A2, 1A8W, 14F1, etc
CNC machines: Vollmer, Woodtronic, Akemat, Widma and so on

► Grinding Indexable inserts (tungsten carbide inserts, ceramic inserts, CBN inserts)
► Model: 6A2T, 6A2M, 11A2B, 12A2T
► Grinding Machine: WENDT, WAIDA, AGATHON, EWAG, COBORN, etc.

► Vitrified bond and Resin bond: vitrified bond has a longer lifespan and higher efficiency than resin bond
► Used for the cylindrical grinding of tungsten carbide
► Models: 6A2(Diameter: 100mm-1200mm)

► Application: grinding various precision ceramic

► Bonded: resin bond & vitrified bond

► Correct choice of grain size and bonded
* Usually rough grinding uses D126, D91 (Resin bond &Vitrified bond)
* Semi-rough grinding uses D76, D64, D54, D46 (Resin bond & Vitrified bond)
* Semi-finish grinding uses D25, D20 (Resin bond &Vitrified bond)
* Finishing grinding uses D15 (Resin bond)
* Super finishing uses D7, D1 (Resin bond)

Best suited for demanding applications where a harder-wearing, longer-lasting blade is required.
specifications can be made according to customers requirements.
FOR CUTTING THE UNMACHINABLES
Hardest material known grinds the hardest, most brittle, and most abrasive applications
– High Heat Resistance
– High Abrasion Resistance

► Steady drilling with better smoothness
► Free drilling and long lifespan
► No damage to the edge
► High drilling efficiency
