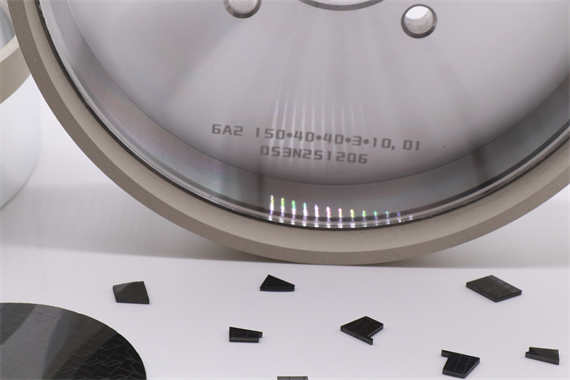

Vitrified Abrasive Wheel for PCD Insert Sharpening

Vitrified diamond peripheral wheel are able to suit all popular machines, such as WENDT, WAIDA, AGATHON, EWAG, COBORN, etc.

Vitrified CBN grinding wheels are mainly used for camshaft and crankshaft of automotive, motorcycle, diesel, gasoline etc.
Material includes cast iron, carbon steel, alloy steel, bearing steel etc.
Suit for cnc camshaft grinder like Japan Toyota, German Junker and Schaudt etc.

Vitrified bond diamond grinding wheels can be used for grinding PCD & PCBN cutting tools, CVD tools, MCD tools, milling cutter, reamer, drill and regrinding, etc.

Vitrified diamond peripheral wheels for ultra-hard materials, such as carbides, PCD, CBN, ceramics or cermets

Ceramic diamond bruting wheels are installed on advanced CNC bruting machines, widely used for polishing and bruting natural diamonds, gemstone, jewel, agate.

Diamond and CBN (cubic boron nitride) internal grinding wheel produced by moresuperhard’s factory can achieve a small diameter of 1.5 mm, and the wear resistance is very good, and there is no need to frequently trim the outer circle. Batch processing of small holes of parts can ensure the consistency of roundness, perpendicularity and diameter tolerance accuracy, high temperature resistance during the grinding operation, and no burns on the workpiece and the grinding wheel.
Grease grinding fluid must be added during the grinding process To cool down and remove chips (tap water can not be added directly, tap water will carbonize the high-temperature grinding CBN raw materials), to avoid the large amount of metal scrap generated during the grinding process from squeezing the hole wall of the workpiece and blocking the pores on the surface of the cubic boron nitride grinding head .

MORESUPERHARD is a professional manufacturer of grinding, cutting, polishing and dressing tools. Thanks to abundant experience in surface treatment, we design and offer a complete grinding and dressing solution to our customers in various industries.

Body Material: Aluminum or Steel
Grain size: all grain size can be customized
Usage: grinding, sharpening, polishing
Bond: resin,vitrified,electroplated,metal bond are also available
Work piece: metal,HSS,tungsten carbide,glass,stone…etc
Size: all sizes,like 100mm,150mm,175mm,200mm,250mm….etc

Vitrified bond diamond wheel are efficiently used for grinding difficult-to-machine materials such as PCD, PCBN, ceramics, etc.
Vitrified bond diamond wheel are generally superior in grinding ability to metal bond wheels. Because the vitrified bond has no elasticity, it is better suited for tight tolerance applications than resin bond wheels

How to choose grain size of ceramic diamond bruting wheel to polish natural diamond?
MD-20: fine polishing small diamond (10 points- 1carat)
MD-40, MD-60: rough polishing big diamond.(1ct ,1.2ct and 1.3 carat,etc)
MD-80: rougher polishing

Vitrified bond diamond grinding wheels for high speed and high efficiency grinding PCD, PCBN cylindrical grinding, automotive engine processing, carbide, ceramic, quratz, glass, silicon wafer, thermal spray coating and magnetic materials, etc

Vitrified bond diamond grinding wheels for grinding
carbide tools
hvof
pcd
pcd pcbn, pcd tools, pcd inserts, pcbn tools, cvd
ceramic
silicon wafer
glass
quartz
sapphire
HSS

MORESUPERHAD can supply quality vitrified bond diamond grinding wheels at very long life as well as fast cutting. We only choose the very strong synthetic diamond as the raw materials, we make sure not only the particle shape is round enough but also be with some sharp points, which can make sure we won’t lose the efficiency while we still want enough life from the wheels. So vitrified bond diamond grinding wheels will help you get fast , stable, much more PCD tools in unit time.

Vitrified diamond wheels for Roll grinding and grinding of thermal spray coatings ( including tungsten carbide , chrome carbide and chrome oxide ), ceramics, carbides, chilled iron composites and other hard-to-grind materials.

vitrified diamond grinding wheels mainly used for sharpening circular saw blades of cemented carbide, high-speed steel, cermet, PCD and pcbn, cvd, mcd, and band saw, etc

Vitrified diamond wheels are used for cylindrical grinding and finishing carbide coated rollers, printing roll, ceramics, wear parts and others hard coated materials. At present, our Vitrified diamond wheel can reach up to 28 inch ( 720 mm) diameter.

Vitrified grinding wheel abrasive diamond can be utilized in numerous grinding applications. These include but are not limited to:
Medical Device and Instrument Manufacturing
PCD & PCBN Tool Grinding
Ball Screw Grinding
Automotive Manufacturing
Aerospace Parts
Wind Turbine Manufacturing
Cutting tools manufacturing

Vitrifie diamond internal wheels for inner grinding tungsten carbide mold, die and jig for mechanical and electronics industry
Model: 1a8, 1a1w
Bonded: vitrified bond, resin bond, electroplated bond
