Manufacturer of camshaft grinding wheels

Vitrified diamond wheels are used for cylindrical grinding and finishing carbide coated rollers, printing roll, ceramics, wear parts and others hard coated materials. At present, our Vitrified diamond wheel can reach up to 28 inch ( 720 mm) diameter.

Vitrified diamond wheels widely used in wafers (semiconductor wafers and solar wafers), diamond composite wafers, diamond polycrystalline, diamond tools, cubic nitriding in developed countries in Europe and America. Boron, tungsten steel (hard alloy), new engineering structural ceramics, gemstones, crystals, rare earth materials (magnetic materials) and other high-hardness and brittle materials are machined, and good economic benefits have been achieved.

Vitrified bond diamond grinding wheel, processing of superhard materials (PCD, PCBN materials), hard alloy, magnetic materials, engineering vitrified, sapphire, powder metallurgy, copper alloy, aluminum alloy, etc.

Vitrified cbn wheels are suitable for internal grinding vane pump, rotary vane compressor stator inner circle and curved surface, piston refrigeration compressor cylinder, universal joint ball path, industrial bearing inner circle or inner hole, Fuel pump nozzle etc.
The vitrified bond cbn grinding wheel can be easily dressed with ordinary diamond tools. Due to the high hardness of cbn abrasive grains, the diamond wears quickly during dressing.

Application: carbide, tungsten steel, vitrified optical glass, sapphire glass, high-speed steel, bearing steel, tool steel, stainless steel, and cast iron, etc
► Bond: vitrified bond & resin bond
► Diameter: 300- 1500mm

► Provide matching dressing grinding wheel
►Diamond & CBN shapes: cylindrical, hexagonal, square, segmented
► Grinding machines: Wendt WBM, Viotoo, AMT, Stahli, Peter Wolters, Diskus, Agathon T&B, Fujisanki, Supfina, Melchiorre, Koyo, Lam Plan, Speedfam, Kemet, Gardner and other brands.

MORESUPERHARD is a professional manufacturer of grinding, cutting, polishing and dressing tools. Thanks to abundant experience in surface treatment, we design and offer a complete grinding and dressing solution to our customers in various industries.

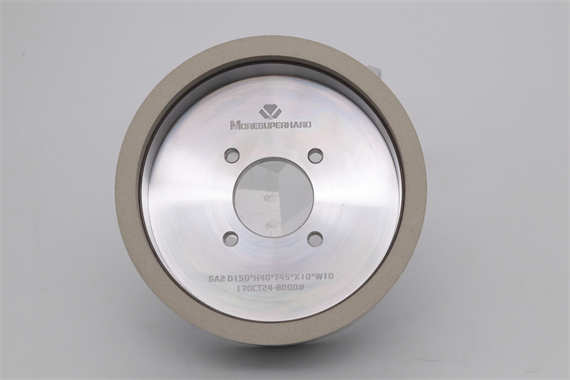

More Superhard specializes in the production of PCD tool special vitrified bond diamond grinding wheels, which are mainly used for the sharpening of the front angle, back angle and side of the circular saw blade of cemented carbide, high-speed steel, cermet, PCD and other materials, and the band saw. The vitrified diamond grinding wheel has excellent performance and low price, welcome friends in the industry to buy.

► Grinding, regrind pcd, pcbn, cvd tools
► Bonded: vitrified bond, resin bond, metal bond
► Width: 1mm – 20mm

► Up to #10000 for super finish
► Cutting-edge chipping <5 μm ► Provide dressing wheel to dress PCD grinding wheel

Vitrified diamond wheels for Roll grinding and grinding of thermal spray coatings ( including tungsten carbide , chrome carbide and chrome oxide ), ceramics, carbides, chilled iron composites and other hard-to-grind materials.

Camshaft grinding wheel is suitable for high-efficient heavy grinding of camshaft of automobile parts.
Grinding wheels for camshaft speed is 80m/s-160m/s
Designed to used on CNC Cam Grinders like Toyoda, Schaudt, Landis, Junker etc.

►Excellent Grinding Action
►less apt to experience loading, and they dress easily for added convenience
►Convenience and Ease of Use
►Grinding abilities apply to both wet and dry tasks on processing objects such as harden steel, glass, ceramic, carbide alloys, ferrite, refractories, semi conductors, and other electrical carbon products.

Vitrified bond diamond grinding wheels for grinding
carbide tools
hvof
pcd
pcd pcbn, pcd tools, pcd inserts, pcbn tools, cvd
ceramic
silicon wafer
glass
quartz
sapphire
HSS

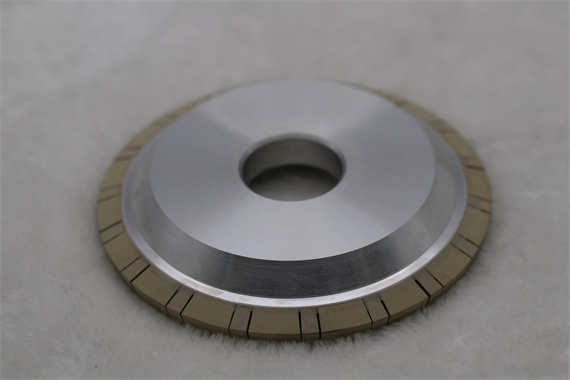

Peripheral Diamond Grinding wheels are used for indexable inserts grinding.
Peripheral Grinding tungsten carbide inserts, ceramic inserts, cermet, pcd and cbn inserts
Model: 6A2T, 6A2M, 11A2B, 12A2T
Bonded: resin bond and vitrified bond

How to choose grain size of ceramic diamond bruting wheel to polish natural diamond?
MD-20: fine polishing small diamond (10 points- 1carat)
MD-40, MD-60: rough polishing big diamond.(1ct ,1.2ct and 1.3 carat,etc)
MD-80: rougher polishing

MORESUPERHAD can supply quality vitrified bond diamond grinding wheels at very long life as well as fast cutting. We only choose the very strong synthetic diamond as the raw materials, we make sure not only the particle shape is round enough but also be with some sharp points, which can make sure we won’t lose the efficiency while we still want enough life from the wheels. So vitrified bond diamond grinding wheels will help you get fast , stable, much more PCD tools in unit time.

Vitrified CBN grinding wheels are mainly used for camshaft and crankshaft of automotive, motorcycle, diesel, gasoline etc.
Material includes cast iron, carbon steel, alloy steel, bearing steel etc.
Suit for cnc camshaft grinder like Japan Toyota, German Junker and Schaudt etc.

► Grinding Indexable inserts (tungsten carbide inserts, ceramic inserts, CBN inserts)
► Model: 6A2T, 6A2M, 11A2B, 12A2T
► Grinding Machine: WENDT, WAIDA, AGATHON, EWAG, COBORN, etc.

vitrified bond diamond cbn wheels are suitable for surface grinding, OD grinding, centerless grinding, internal grinding, tool grinding, cylindrical grinding and profile grinding, etc

The First Vitrified Diamond cylindrical Grinding Wheel used in thermal spraying coating in MoreSuperHard

Vitrified grinding wheel abrasive diamond can be utilized in numerous grinding applications. These include but are not limited to:
Medical Device and Instrument Manufacturing
PCD & PCBN Tool Grinding
Ball Screw Grinding
Automotive Manufacturing
Aerospace Parts
Wind Turbine Manufacturing
Cutting tools manufacturing

More SuperHard Products devotes to offer an efficiency and economic solution in PCD and CBN cutting tools grinding. Vitrified diamond grinding wheels for rough/fine grinding PCD & PCBN cutting tools, CVD tools, MCD tools, milling cutter, reamer, drill and regrinding, carbide, ceramic, cermet, etc

vitrified diamond profile grinding wheel for dressing high precision rotary dresser roll.

Diamond and CBN (cubic boron nitride) internal grinding wheel produced by moresuperhard’s factory can achieve a small diameter of 1.5 mm, and the wear resistance is very good, and there is no need to frequently trim the outer circle. Batch processing of small holes of parts can ensure the consistency of roundness, perpendicularity and diameter tolerance accuracy, high temperature resistance during the grinding operation, and no burns on the workpiece and the grinding wheel.
Grease grinding fluid must be added during the grinding process To cool down and remove chips (tap water can not be added directly, tap water will carbonize the high-temperature grinding CBN raw materials), to avoid the large amount of metal scrap generated during the grinding process from squeezing the hole wall of the workpiece and blocking the pores on the surface of the cubic boron nitride grinding head .

High Quality internal grinding wheels processing HRC35-HRC70 degree steel parts (20 chromium steel, 40 chromium steel, tool steel, die steel, bearing steel, alloy steel, structural steel, high-speed steel, ductile iron, heat-resistant steel, titanium alloy, 38 chromium molybdenum aluminum, special Structural steel, etc.)
Customized vitrified bond CBN internal grinding wheels and grinding heads for grinding small holes.

Body Material: Aluminum or Steel
Grain size: all grain size can be customized
Usage: grinding, sharpening, polishing
Bond: resin,vitrified,electroplated,metal bond are also available
Work piece: metal,HSS,tungsten carbide,glass,stone…etc
Size: all sizes,like 100mm,150mm,175mm,200mm,250mm….etc

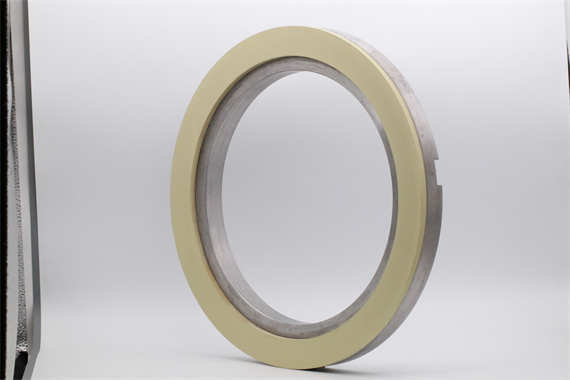

Vitrified diamond peripheral wheel are able to suit all popular machines, such as WENDT, WAIDA, AGATHON, EWAG, COBORN, etc.

► Grinding, regrind pcd, pcbn, cvd tools
► Bonded: vitrified bond, resin bond, metal bond
► Width: 1mm – 20mm

► Up to #10000 for super finish
► Cutting-edge chipping <5 μm ► Provide dressing wheel to dress PCD grinding wheel

CBN internal grinding wheels vitrified bonded suitable for grinding materials including
1. Cast iron: powder metallurgy, chilled cast iron, ductile cast iron, gray cast iron, alloy cast iron, etc
2. Steel parts: 20Cr, GCr15, Scr415H, 45 steel, 55 steel, etc
The vitrified CBN (cubic boron nitride) internal grinding wheel produced by our factory can achieve a small diameter of 1.5 mm, and the wear resistance is very good

Diamond peripheral wheels for grinding indexable inserts (tungsten carbide inserts, ceramic inserts, CBN inserts, cermet inserts, etc)
