High-Precision Cup-Shaped Diamond Grinding Bit for Mold & Die Finishing

Peripheral Diamond Grinding wheels are used for indexable inserts grinding.
Peripheral Grinding tungsten carbide inserts, ceramic inserts, cermet, pcd and cbn inserts
Model: 6A2T, 6A2M, 11A2B, 12A2T
Bonded: resin bond and vitrified bond

Flute grinding wheels are specially engineered high density (near zero porosity), resin bonded wheels which ensure that the form is generated with utmost precision and finesse.
Features Of Flute Grinding Wheel
* High intensityperipheral speed 80m/s
* Anti-impact:bearing larger grinding pressure
* Suitable self-sharpening:larger remove grinding without burning
* Excellent balance:no vibration cracks

* Workpiece Materials: grinding tungsten carbide cutting tools, ceramic, magnetic materials, silicon, glass, quartz and thermal spraying alloy, etc.

* Applicable Industry: CNC Tool Grinding, Woodworking Tool Grinding, Thermal Spraying Coated, Silicon Wafer Grinding, etc.

Resin bond diamond mounted points are excellent tools for grinding small areas with diamond smoothing tools for making a clear polished surface finish. This tool has a unique quality that is recommendable for stone carving, cleaning up work, glass, ceramic, and metal.
► Application: harder alloys, ceramics and cermet.
► Bonded: resin bond

► Grinding Indexable inserts (tungsten carbide inserts, ceramic inserts, CBN inserts)
► Model: 6A2T, 6A2M, 11A2B, 12A2T
► Grinding Machine: WENDT, WAIDA, AGATHON, EWAG, COBORN, etc.

strict quality testing of Moresuperhard’s silicon and sapphire wafer edge grinding wheels

We provide precision grinding & finishing bearing processing service and solution. There are many types of grinding wheel applications that go into manufacturing bearings.

► Model: 1A1R, 1A1, 3A1, 1V1, 4A2, 4BT9, 6A2, 11V9, 12A2, 14F, etc
► Workpiece Materials: grinding tungsten carbide cutting tools, ceramic , magnetic materials, silicon , sapphire, glass , quartz and HVOF carbide coated,PCD, PCBN, etc
► Applicable Industry: carbide inserts (cnc tools), carbide circular saw (woodworking tools), Thermal Spraying Coated, Silicon Wafer Grinding, etc

►Excellent Grinding Action
►less apt to experience loading, and they dress easily for added convenience
►Convenience and Ease of Use
►Grinding abilities apply to both wet and dry tasks on processing objects such as harden steel, glass, ceramic, carbide alloys, ferrite, refractories, semi conductors, and other electrical carbon products.

Resin bond diamond grinding wheel for grinding and resharpening carbide drills; Resin bond Cubic Boron Nitride grinding wheel for grinding and resharpening high-speed steel drills.
Advantages:
High grinding efficiency；
High material removal rate；
High tools surface finish and good cutting edge quality；
The shape of the grinding wheel is kept well；
High machining accuracy；
Low loss, low thermal damage, no burn of workpiece；
Wear-resistant, long working life；

► Application: inner grinding of bearing, compressor, CVJ ball-cage, hydraulic tappets, universal joint, stator and rotor .

► Body type: ID Wheel with Shank, ID Wheel without Shank
► Model type: 1A8, 1A1W, 1A1, DWA
► We can offer: abrasive internal grinding wheels (PA, SG), CBN internal grinding wheels, Diamond internal grinding wheel

1.Constant power section design reduces the cost of the inverter.
2.Reliable life with the application of P4 precision ceramic ball bearings.
3. Low heat loss with use of Copper rotor motor or imported motor.
Based on the above features, our high frequency and high speed spindles play the important role in improving the production efficiency and machining quality.

►Excellent Grinding Action
►less apt to experience loading, and they dress easily for added convenience
►Convenience and Ease of Use
►Grinding abilities apply to both wet and dry tasks on processing objects such as harden steel, glass, ceramic, carbide alloys, ferrite, refractories, semi conductors, and other electrical carbon products.

Application: sculpturing, dressing and internal grinding carbide, ceramic,glass, stones, marble,etc

Resin/virtified/metal bond diamond wheel for silicon wafer can be used for the Japanese ,German, American, Korean and other grinders . Such as Okamoto , Disco, Strasbaugh and others grinding machine.

The honing reamer is equipped with reasonable joints, tools and machine tools, which can achieve the ultra-high precision of the inner hole: Cylindricity: ≤1 μm, Roundness: ≤ 1 μm, Roughness: ≤Ra0.1, Tolerance: ≤1μm

Moresuperhard provides qualified services For DANOBAT’s Precision Grinding Machines.
External grinding models：CG, PG, LG, HG, WT, mBTG-DANTIP,
Internal grinding models: ID, IRD,ILD, IED.

► Vitrified diamond/CBN grinding wheels
► Resind diamond/CBN grinding wheels
► Conventional grinding wheels
► Diamond dressing wheels

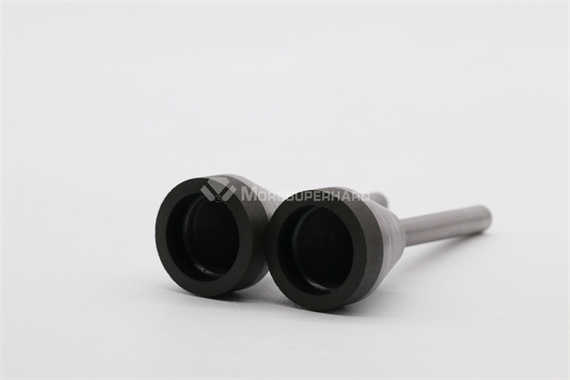

Professional resin bond diamond mounted point designed for precision internal grinding of hard and brittle materials. The cup-shaped abrasive head ensures uniform material removal, while the sturdy steel shank guarantees stable operation. Ideal for mold repair, die finishing, and small bore grinding tasks.

► Bond: Metal nickel plating electroplated bond & Resin bond (resin bond also consists of flexible and hard type)
► Length: 150mm – 5000m
► Width: 5mm – 350mm
► Grit: #60,#100,#120,#200,#400,#800,#1500,#2000,#3000,#5000

Ensuring an excellent finish by simply drawing the blade through the groove over the two grinding wheels
-Lower cutting time and higher cutting efficiency
-No need for dressing
-Long lifespan
Grit: 80/100, 140/170, 170/200…

► Suitable for all kinds of electric grinders, lapping machines, etc., grinding, lapping, surface grinding, efficient and fast
► Suitable for sandblasting, agate, glass, mold, etc., polishing, engraving, edge grinding and sewing, etc., efficient and save a lot of time
► The focus of the diamond ball grinding head is engraving, U-shaped surface engraving and hollow engraving
► To ensure the life of the tool, cooling with water is required, as the diamond will undergo patterning and wear due to overheating.

Film belt is for grinding steel, stone, glass, ceramics, mono crystalline silicon, polysilicon, zirconia, alumina, metal-nonmetallic synthetic materials, cemented carbide, aluminum-magnesium alloy, aluminum beryllium alloy, titanium alloy and etc. hard brittle materials.
