Qualified point diamond dressing tools manufacturer

► Bond: Metal nickel plating electroplated bond & Resin bond (resin bond also consists of flexible and hard type)
► Length: 150mm – 5000m
► Width: 5mm – 350mm
► Grit: #60,#100,#120,#200,#400,#800,#1500,#2000,#3000,#5000

► Bonded: vitrified bond, resin bond, metal bond
► Width: 1mm – 20mm
► Up to #10000 for super finish
► Cutting-edge chipping <5 μm ► Provide dressing wheel to dress PCD grinding wheel

More superhard provide the solution for Round Tools ( tungsten carbide, HSS, milling cutter, reamer and drill ) Grinding.
Grinding Wheel for 4 Axis CNC Tool Regrinding Machine
Bonded of Grinding Wheel: resin diamond & cbn wheel, electroplated diamond & cbn wheel

Moresuperhard has been developed superabrasive diamond wheel to dressing vitrified diamond pcd grinding wheel.
Advatages : compared with conventional grinding wheel, the diamond dressing wheel has good shape preserving property.
White corundum grinding cup wheels are used for dressing Coborn RG9 PCD Tool Grinding Wheels. Grinding wheels for dressing vitrified diamond PCD grinding wheels.

► Application: back thinning, front grinding and fine grinding of discrete devices, integrated circuit substrate silicon wafers, sapphire epitaxial wafers, silicon wafers, gallium arsenide, GaN wafers, silicon-based chips, etc

► Grinding Machines: NTS, SHUWA, ENGIS, Okamoto , Disco, TSK and STRASBAUGH, etc
► Bonded: Vitrified bond & Resin bond
► Diameter (mm): 200mm, 250mm, 280mm, 300mm, 350mm

Main features of CNC profile grinding wheels
Perfect processing quality
High efficient grinding with fast feeding
Good wear resistance and shape keeping
Applications of cnc grinding wheel
Mainly used for grinding digital controlled cutting tools such as tungsten carbide, high speed steel, stainless drill, mill and rimer.
Type: 1a1, 14a1, 11v9, 1v1, 12v9, 14f1

Application: carbide, tungsten steel, vitrified optical glass, sapphire glass, high-speed steel, bearing steel, tool steel, stainless steel, and cast iron, etc
► Bond: vitrified bond & resin bond
► Diameter: 300- 1500mm

► Provide matching dressing grinding wheel
►Diamond & CBN shapes: cylindrical, hexagonal, square, segmented
► Grinding machines: Wendt WBM, Viotoo, AMT, Stahli, Peter Wolters, Diskus, Agathon T&B, Fujisanki, Supfina, Melchiorre, Koyo, Lam Plan, Speedfam, Kemet, Gardner and other brands.

► OD cylindrical grinding wheel (1A1 shape)

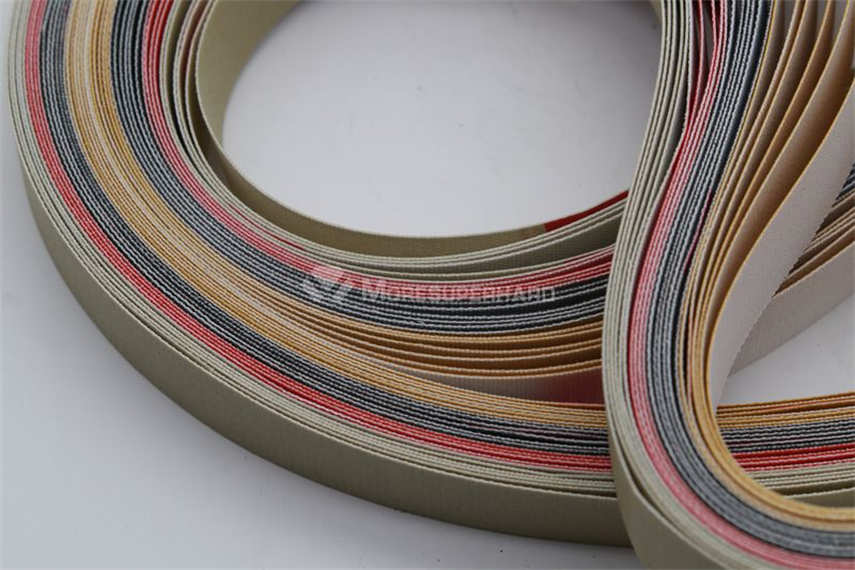

► Diamond sanding belts
► Diamond internal grinding wheel
► Diamond honing stone
Model: 1A1 diamond wheel (diameter up to 1100mm)

►Excellent Grinding Action
►less apt to experience loading, and they dress easily for added convenience
►Convenience and Ease of Use
►Grinding abilities apply to both wet and dry tasks on processing objects such as harden steel, glass, ceramic, carbide alloys, ferrite, refractories, semi conductors, and other electrical carbon products.

► Application: precise grinding mould and die, punch pin, optical grinding and form grinding cutting tool ( such as end mill and reamer) and precise instrument
► Model: 3A1, 14K1, 1B9
► Bonded: resin bond & metal bond
► Optical Profile Grinder: Amada, Waida, Wasion, etc

PCD materials are mainly divided into three categories according to the particle size:
coarse particle size (20-50μm),
medium particle size (about 10μm)
fine particle size (-5μm).
The coarser the particle size, the more difficult it is to grind. The coarse particle size tends to be jagged after grinding. , The quality is poor, but the wear resistance is the strongest; the fine-grained grinding is easier, and the quality of the cutting edge after grinding is better.
Vitrified diamond grinding wheels are used for grinding pcd cbn carbide ceramic cermet cutting tools

• To shape grinding wheels in the shortest possible time
• Profiling of the grinding wheel in only one operation using the plunge-cut dressing method
• Extreme accuracy, even with highly complex profile contours
• Highest cost-effectiveness

Vitrified diamond grinding wheels for grinding PCD & PCBN cutting tools, CVD tools, MCD tools, milling cutter, reamer, drill and regrinding, etc
Grain size selection of vitrified diamond grinding wheel
► W40(500# D35) W28(D20) Rough Grinding.
► W20 (800# -1000#, D20) Universal Grinding.
► W10 (1500# D15A) W7 (2000# D15B) Finish Grinding.
► W5 (3000# D7) W3.5 (4000# D3) Super Finish Grinding.

Characteristics of CNC Cylindrical Grinder
• The grinding wheel spindle has high rigidity, high precision, high service life and low vibration and low friction
• The self-aligning function, the wheel spindle is not affected by the belt tension and is biased
• The spindle has a centering and simultaneous compound function, and the user can perform rapid conversion in the core machining and the chuck clamping process.
• The Z-axis consists of an AC servo motor, a high-precision bead screw, and an automatic forced lubrication system
• High repeatability. long track service life, high rigidity and smooth reciprocating motion
• Configurable surface measurement, outer diameter thickness measurement, grinding wheel anti-collision device

Vitrified bond CBN Grinding Wheel is suitable for high-efficient heavy grinding of a camshaft of automobile parts. The wheel speed is 80m/s-160m/s, designed to be used on CNC Cam Grinders like Toyoda, Schaudt, Landis, Junker, etc.
Application: inner grinding of bearing, compressor, CVJ ball-cage, hydraulic tappets, universal joint, stator and rotor.

Moresuperhard provides qualified services For DANOBAT Precision Grinding Machines.
Centerless grinding models：VG, DVG

► Resind diamond/CBN grinding wheels
► Conventional grinding wheels
► Diamond dressing wheels

1.Constant power section design reduces the cost of the inverter.
2.Reliable life with the application of P4 precision ceramic ball bearings.
3. Low heat loss with use of Copper rotor motor or imported motor.
Based on the above features, our high frequency and high speed spindles play the important role in improving the production efficiency and machining quality.

— High-precision, high-efficiency
— Center-going, step-difference forming external cylindrical grinding
— The punches and needles are rough and finely ground at one time, and the finish is high
— With less frequent dressing in the case of vitrified CBN wheels or without dressing in the case of plated CBN wheels

Diamond CNC grinding wheels are mainly used for the processing and grinding of grooving, shovel back and end teeth of CNC tools such as solid carbide, high-speed steel, stainless steel drills, milling cutters and reamers

MORESUPERHARD has more 10 years of manufacturing experience and a strict production control and management system. Our grinding wheels are rigorously tested from raw material to finished product.

The bond strength of this type of diamond grinding wheel is weaker than that of other wheels. The self-sharpening for carbide saw blade is better, no blocking.
Diamond and CBN wheels for sharpening circular saw blades (TC, HSS)
Models of grinding wheel: 4A2, 4BT9, 4A9, 3A1, 14A1, 6V5, 6A2, 1A8W, 14F1, etc
CNC machines: Vollmer, Woodtronic, Akemat, Widma and so on

Resin bond diamond & CBN wheels are mainly used for small-diameter tungsten, stainless steel or HSS drills, micro drills, and end mills used in electronics, medical technology, and the automotive industry.

Main Application
Resin bond grinding wheels have strong competitive advantages in the processing fields of carbide tools, ceramics, glass, PCBN tools, PDC cutter, Steel, cast iron, electronic information components precision cutting etc.

Manufacturing processes for silicon semiconductor
Silicon Ingot ⇒ Cropping(electroplated bandsaw) ⇒ Cylindrical / Flat Grinding Silicon Rod ⇒ Ingot Silicon (diamond wire) ⇒ Lapping (double side wheel/polishing pad) ⇒ Edge Grinding ⇒ Surface grinding ⇒ polishing⇒ wafer⇒ patterning ⇒ back grinding (vitrified / resin wheels) ⇒ dicing (dicing blades)⇒ chips ⇒ molding ⇒ packaging

Metal bond Diamond wheels can be used for processing high quality side windows glass, front and back windshield

Rough grinding and fine milling of auto glass

Machine: shape edging machine, profiling milling machine,CNC equipment etc(such as Bystronic, Bando machine)
Application:
For rough grinding and fine milling of auto glass. Mainly used for shape edging machine, profiling milling machine,CNC equipment etc(such as Bystronic, Bando machine).

Advantages:
1.Accurate Aperture
2.High pass rate
3.Even smoothness
4.Long service life

►Excellent Grinding Action
►less apt to experience loading, and they dress easily for added convenience
►Convenience and Ease of Use
►Grinding abilities apply to both wet and dry tasks on processing objects such as harden steel, glass, ceramic, carbide alloys, ferrite, refractories, semi conductors, and other electrical carbon products.
