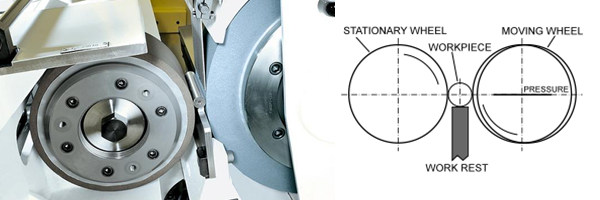

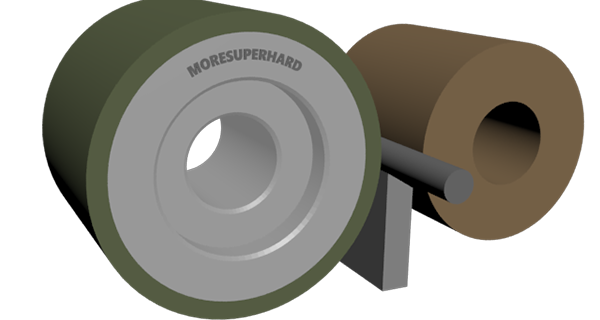

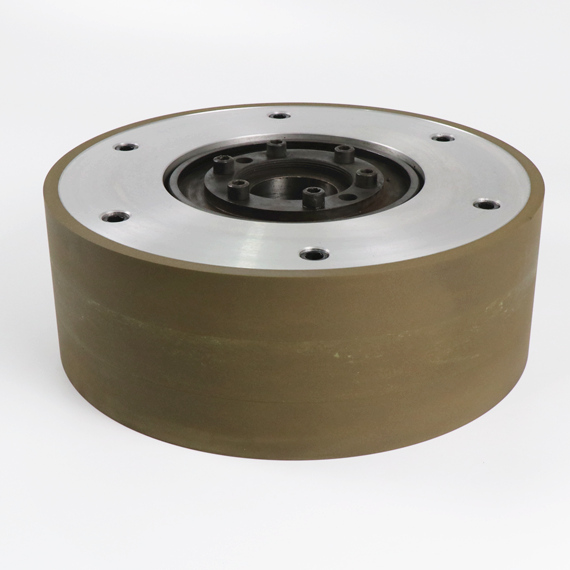

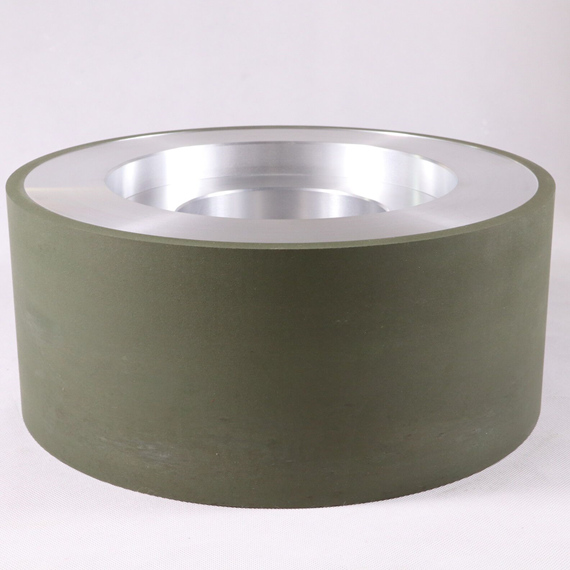

Centreless (centerless) grinding can perform excellent roundness of the work piece.The workpiece is supported by a work rest blade and set between a rubber regulating wheel that rotates the workpiece and a rotating grinding wheel Applications: Rough, semi-finish and finish grinding tungsten carbide, ceramics, magnetic material, stainless steel bar, PCD and PCBN compositives

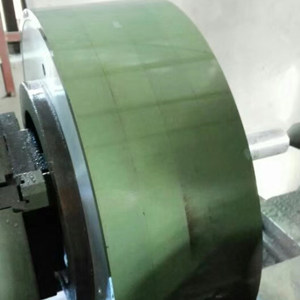

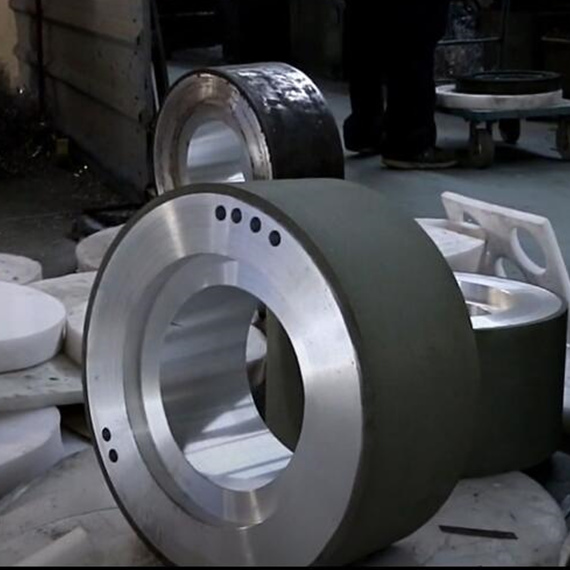

Centerless grinding wheel manufacturing

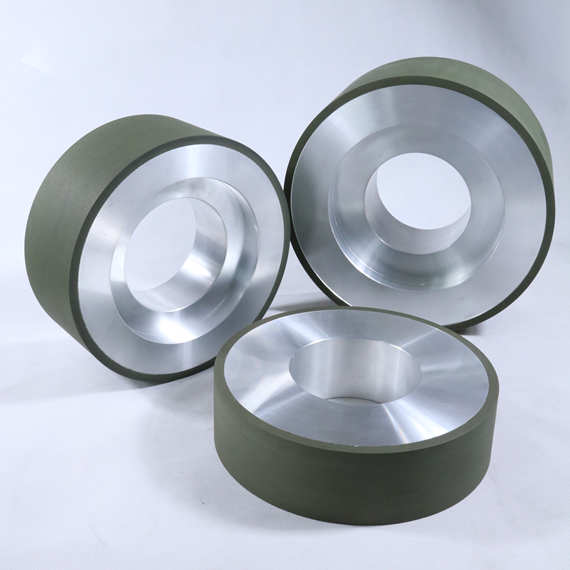

Specifications of centerless diamond grinding wheel
Model
D (mm)
T (mm)
H (mm)
X (mm)

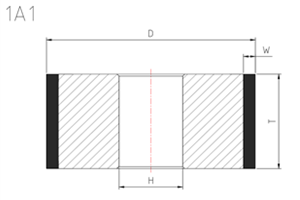

1A1

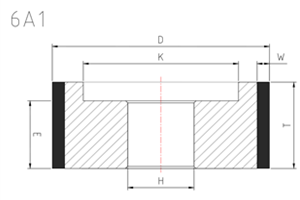

6A1

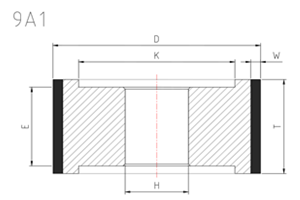

9A1
300
150
120
5, 10
350
125
127
5, 10
400
150
203
5, 10
455
205
228.6
5, 10
500
150
305
5, 10
650
380
Round run-out of grinding wheel ≤0.02mm
Straightness ≤ 0.02 mm
